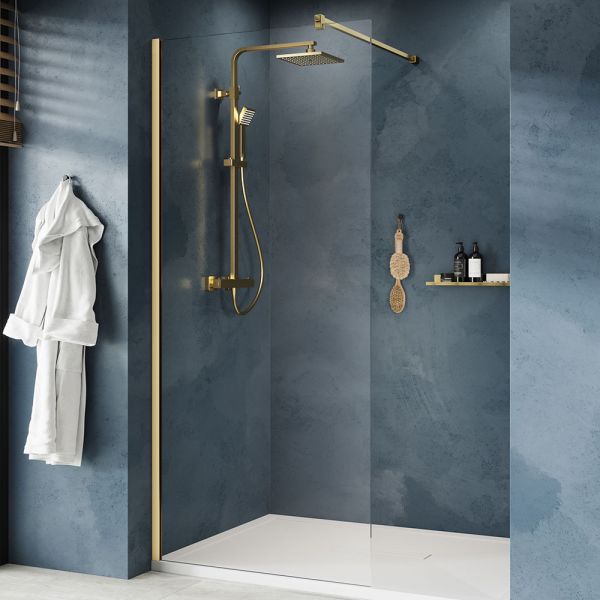

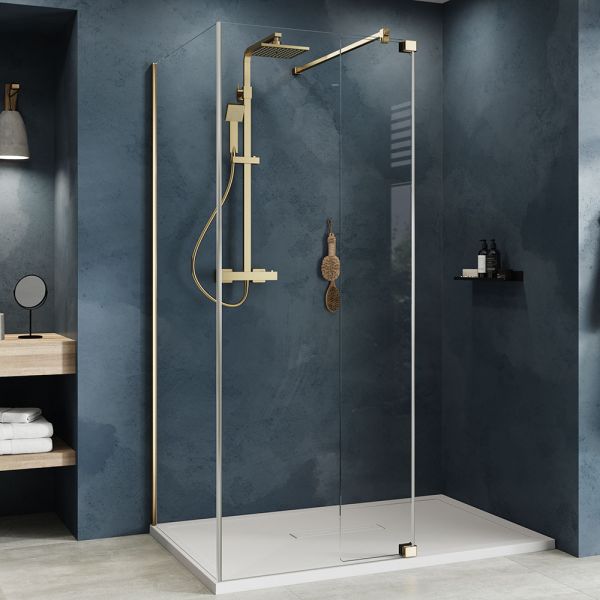

Kudos Ultimate 2 Wet Room Shower Panel 10mm 400 Wide Brushed Brass

Kudos Ultimate2 Brushed Brass 400 Wet Room Panel - 10mm Glass

Kudos Ultimate2 Walk-ins provide a stunning showering area thanks to their British-made quality components.

This item is a Kudos glass panel only - wall fixings and support bars plus matching Kudos KStone shower tray and fast flow waste all available separately. Please see below for parts lists.

Ultimate 2 Wet Room Panel Features:

• 10mm toughened safety glass with Lifeshield™ glass protection
• High quality support brackets in brushed brass - Available as options
• Glass to floor / tray clear protective strip
• Crystal clear glass to glass seals
• Easy to install
• 1952mm high (1985mm including support bar)
• Covered by the KUDOS Lifetime Guarantee

Wall Post Kit Option:

Wall Profile (10WPKBRG) - adds a minimum 5mm to the width of the glass panel plus an allowance of up to 20mm for out of true walls.

Support Arms Options:

Wall to Glass Support Arm (10WPFPFKBRG) - 1000mm long support arm that can be cut to size to suit your requirements. Arm attaches between glass and adjacent wall to offer a solid fixture.

Ceiling to Glass Support Arm (10WPGCBRG) - 600mm high, not as robust as wall to glass supports but suits certain installation requirements.

Side Panel Support Arm (10WPSPFKBRG) - connects in a T-shape from existing Wall to Glass Supports. Should be used where Wet Room Panel is intended for use as a Side Panel in a corner enclosure.

Kudos Fold Away Deflector Panels:

Designed to fit neatly behind the front panel when not in use, the 300mm fold away deflector panel stops at a 45° angle to the front panel when in use to provide the optimum protection from over-spray. Please note - Image shows right hand deflector with chrome hinges - this product will be supplied with brushed brass hinges.

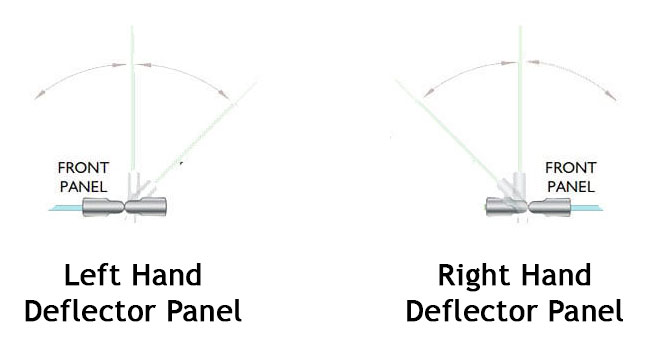

Please refer to the provided diagram to determine whether a left-hand or right-hand fold-away deflector panel is needed for your installation.

Glass to Glass Corner Seal:

Add a Glass to Glass seal to create a three sided shower enclosure by connecting two panels together.

If you require any assistance in building your Kudos wetroom please do not hesitate to contact us.

Create your own Ultimate Shower
