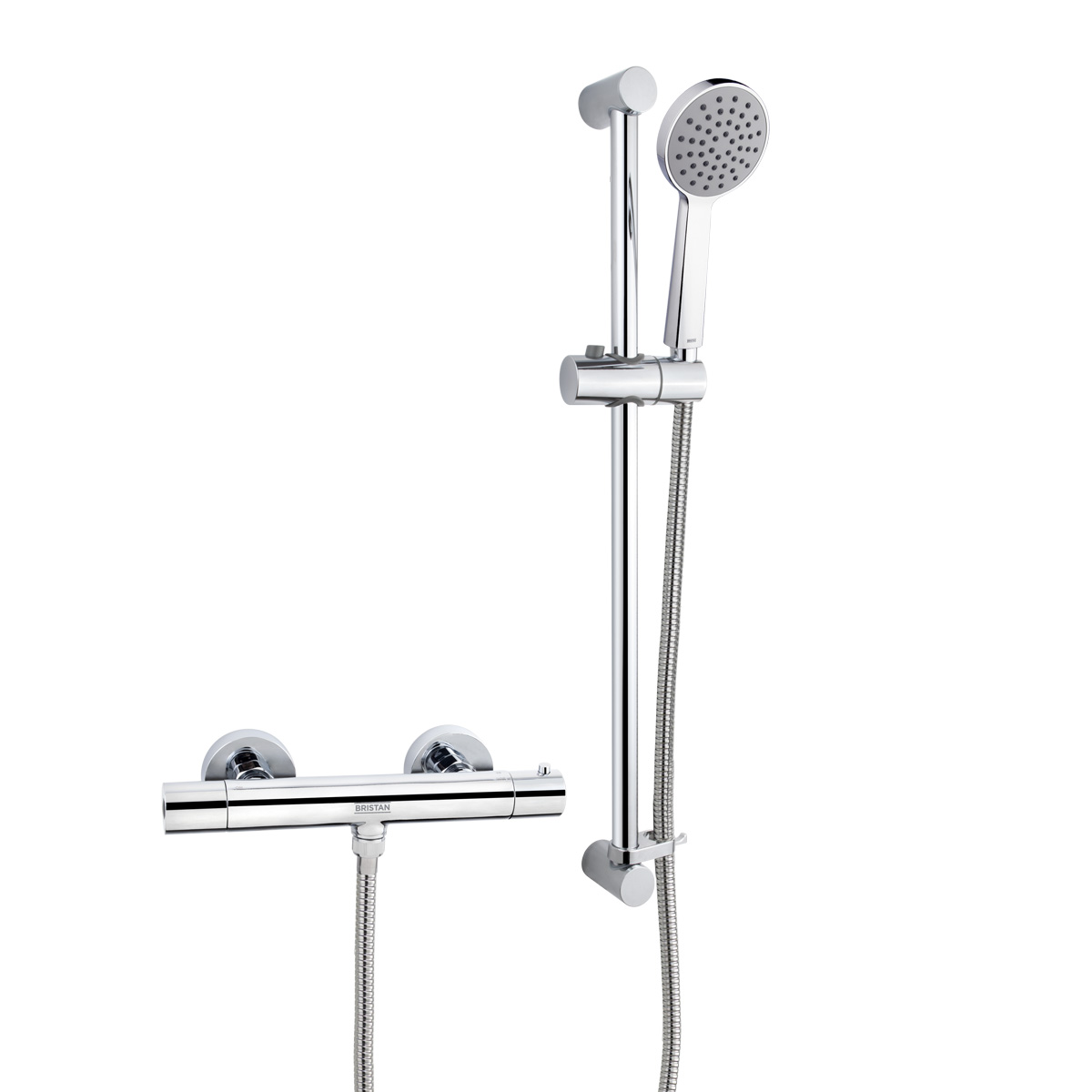

Bristan ZING Basic Cool Touch Bar Mixer with Standard Connections, SM kit ZI SHXSMCT C

ZING Basic Cool Touch Bar Mixer with Standard Connections, SM kit from Bristan

Zing Safe Touch Bar Mixer SM Kit - G1/2" inlet connections. Thermostatic cartridge with preset temperature stop at 38°C, can be over-ridden to a maximum of 46°C. Cold water feed surrounds the hot water to ensure the valve is safe to touch by all the family. Includes 1.5m hose, rub-clean anti-limescale handset and hose retainer.

Product Specifications

• Chrome finish
• Contemporary Design
• Body is of brass construction
• Valve Type: 1/4 Turn 1/2" ceramic disc valve
• Cartridge Type: Thermostatic Cartridge
• Suitable for all plumbing systems (Preferably balanced)
• Inlet Connections: G 1/2"
• Outlet Connection: G ½"
• Working Pressures: Min 0.2bar, Max 5.0bar, Maximum Static Pressure 10.0bar
• Dimensions for Fitting: ZI SHXSMCT C - 135-165mm adjustable inlet centres, ZI SHXSMCTFF C -150 mm inlet centres

Additional Information

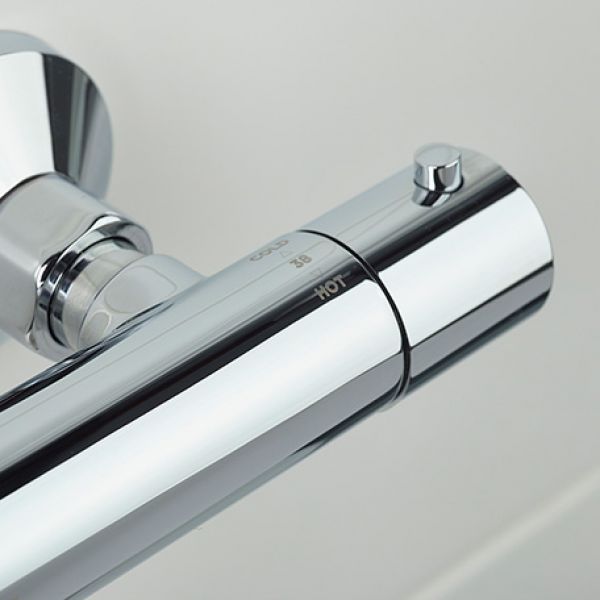

• Unique Cool Chrome technology ensures the bar valve stays cool to the touch while in use.
• Dual control - Flow and temperature are controlled separately, giving accurate control of both.
• Thermostatic cartridge maintains showering temperature to +/- 1°C by compensating for changes in the incoming water temperature and pressure giving the stable outlet temperature.
• Factory set to a maximum of 38°C to eliminate the ability to select an unsafe temperature - this is adjustable to suit user preference and up to a maximum of 46°C.
• ZI SHXSMCT C supplied with cranked union connections for variable inlets between 135-165mm.
• ZI SHXSMCTFF C supplied with WMNT10 C fast fit connections.

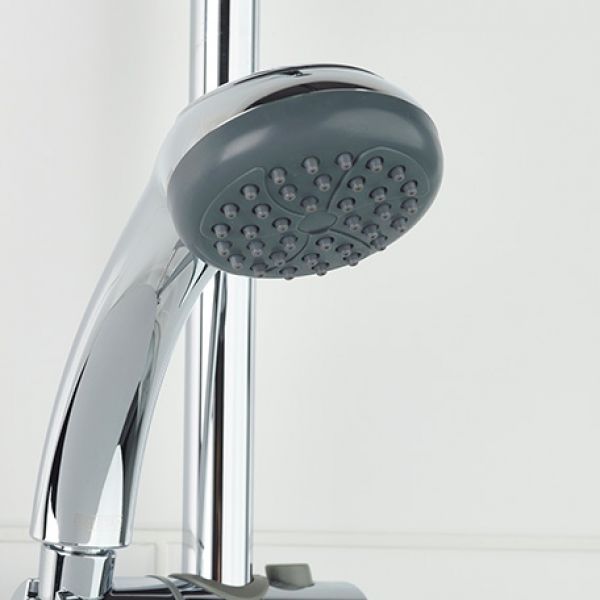

• Supplied with 1.5m hose, riser rail, hose retainer and single function handset with rub clean nozzles.
• Chrome plated to BS EN 248

• Bristan ZING Basic Cool Touch Bar Mixer with Standard Connections, SM kit ZI SHXSMCT C Datasheet (PDF)

• Bristan ZING Basic Cool Touch Bar Mixer with Standard Connections, SM kit ZI SHXSMCT C Fitting Instructions (PDF)

ZING Basic Cool Touch Bar Mixer with Standard Connections, SM kit ZI SHXSMCT C - With exact construction Bristan brings an excellent item that combines dependable build with a first-rate look. By choosing HomeSupply you can purchase a Bristan ZING Basic Cool Touch Bar Mixer with Standard Connections, SM kit ZI SHXSMCT C at a competitive price and be assured of acclaimed customer service.
