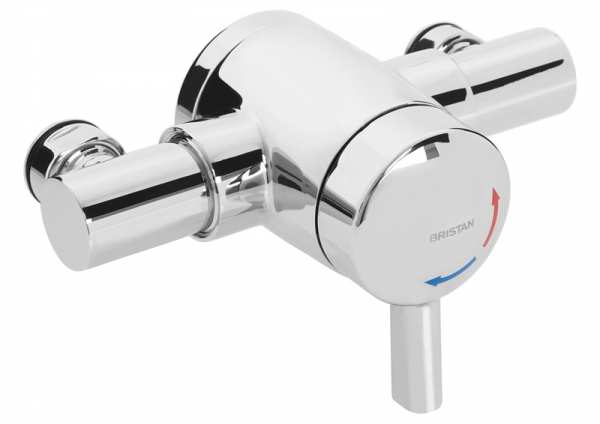

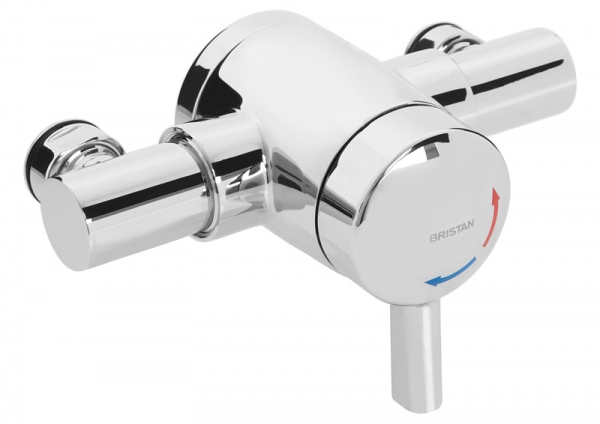

Bristan OPAC thermostatic exposed mini valve with chrome Lever MINI2 TS1203 EL C

OPAC thermostatic exposed mini valve with chrome Lever from Bristan

OPAC Thermostatic Exposed Mini Shower Valve with Lever Chrome - Single sequential control for both temperature and flow. Adjustable inlet centres mean you can use existing pipework with centres between 110mm and 155mm. High performance even at 0.5 bar inlet pressure. Automatic shutoff in the event of hot or cold water supply failure. Check valves and serviceable filters as standard.

Product Specifications

• Chrome finish
• Commercial
• Body is of brass construction and is designed to conform to BS EN 1111:1999 (HP) and BS EN 1287:1999 (LP)
• Valve Type: Thermostatic Cartridge
• Suitable for all plumbing system Supplys (Preferably balanced)
• Inlet Connections: 15mm compression elbows
• Outlet Connections: 1/2" BSP
• Working Pressures: Min 0.2bar, Max 8.0bar, Maximum Static Pressure: 10.0 bar

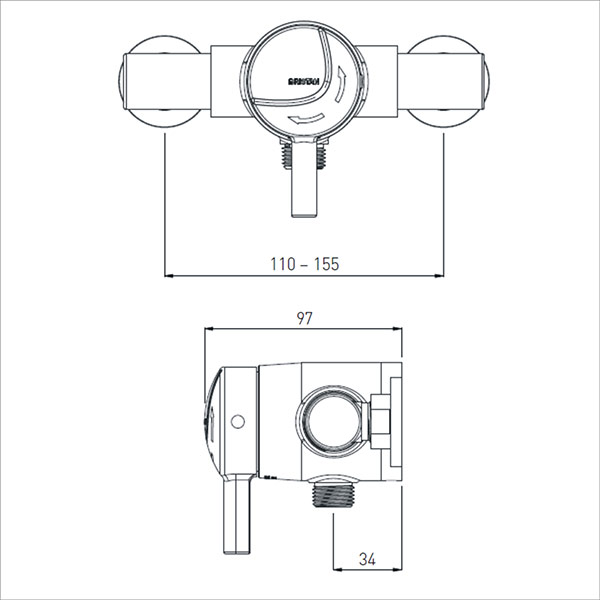

• Dimensions for Fitting: 110-155mm inlet centres

Additional Information

• Single sequential control for both temperature & flow.
• Automatic thermostatic shut-off in the event of hot or cold water failure.
• Check valves and serviceable filters as standard
• Supplied as 'valve only' and thus can be customised by choosing accessories from our Pick n Mix showering options. Please see our Product and Price guide for details.
• Adjustable inlet centres between 110-155mm.
• Chrome plated to BS EN 248.

• Bristan OPAC thermostatic exposed mini valve with chrome Lever MINI2 TS1203 EL C Datasheet (PDF)

• Bristan OPAC thermostatic exposed mini valve with chrome Lever MINI2 TS1203 EL C Fitting Instructions (PDF)

OPAC thermostatic exposed mini valve with chrome Lever MINI2 TS1203 EL C - As a result of thorough design Bristan provides a leading product which fuses reliable build with an adorable look. As always with HomeSupply you can purchase a Bristan OPAC thermostatic exposed mini valve with chrome Lever MINI2 TS1203 EL C at a discounted price.
