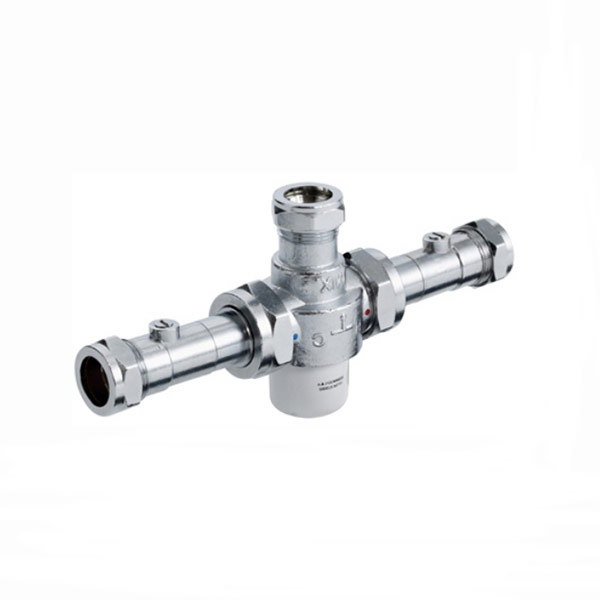

Bristan Gummers 22mm Thermostatic Mixing Valve with Isolation MT753CP ISO

Gummers 22mm Thermostatic Mixing Valve with Isolation from Bristan

22mm Thermostatic Mixing Valve with Isolation - Isolation at mixing point facilitates easy servicing. High and low pressure bath fill applications. Part G compliant. Automatic shutoff in the event of hot or cold water supply failure. Check valves and serviceable filters as standard.

Product Specifications

• Main Construction Material: brass
• Shower Type: thermostatic mixing valve
• Maximum Hot Water Supply Temperature: 80°C
• Plumbing System Suitability: Suitable for all plumbing systems
• Operating pressure min 0.2 bar - max 5.0 bar
• Connection Inlet: 22mm
• Connection Outlet: 22mm
• Isolation valve included
• Check valve included
• WRAS approved

Additional Information

• Suitable for high and low pressure bath fill applications
• Isolation at mixing point facilitates easy servicing
• Automatic shutoff in the event of hot or cold water supply failure
• Check valves and serviceable filters as standard
• Part G compliant

• Bristan Gummers 22mm Thermostatic Mixing Valve with Isolation MT753CP ISO Datasheet (PDF)

• Bristan Gummers 22mm Thermostatic Mixing Valve with Isolation MT753CP ISO Fitting Instructions (PDF)
