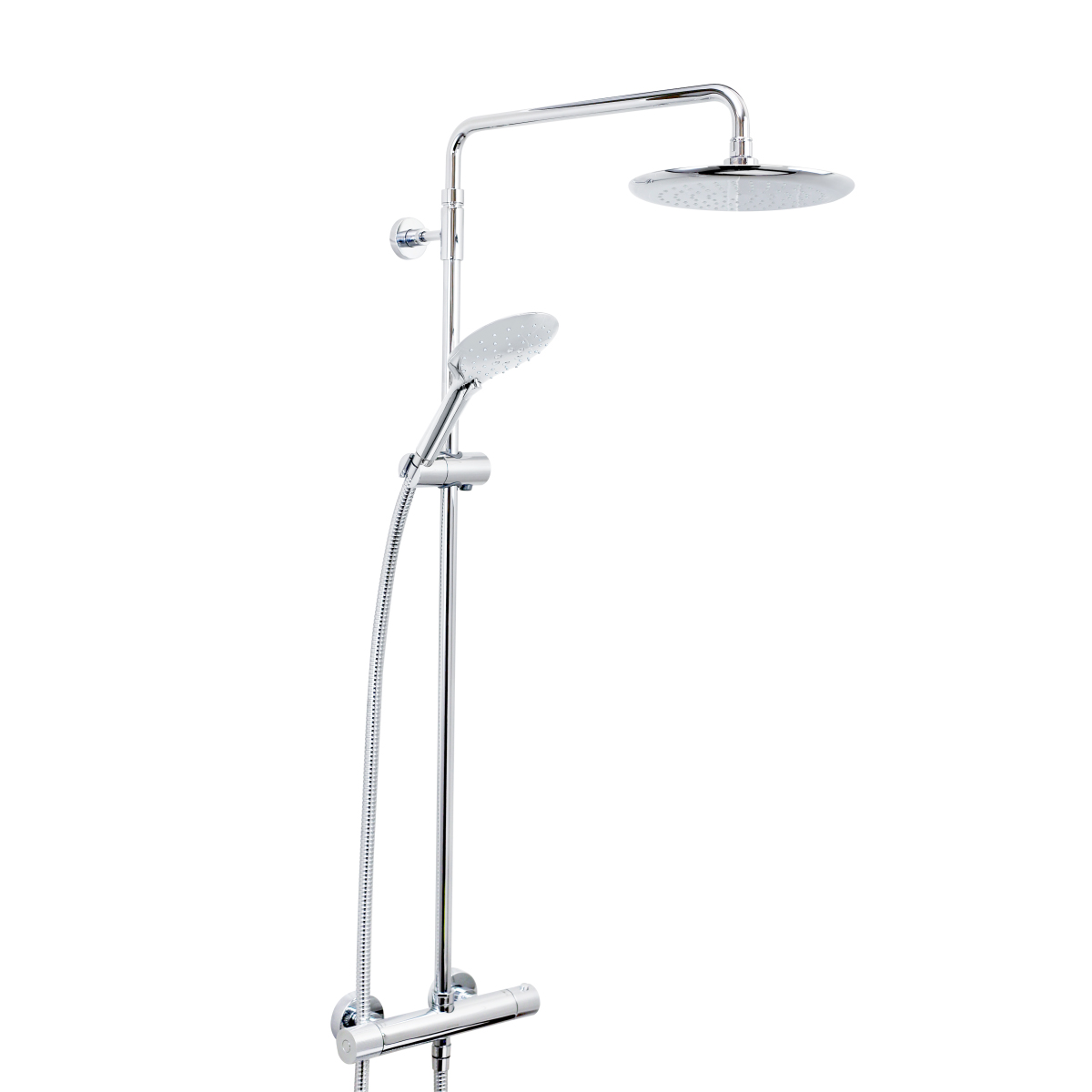

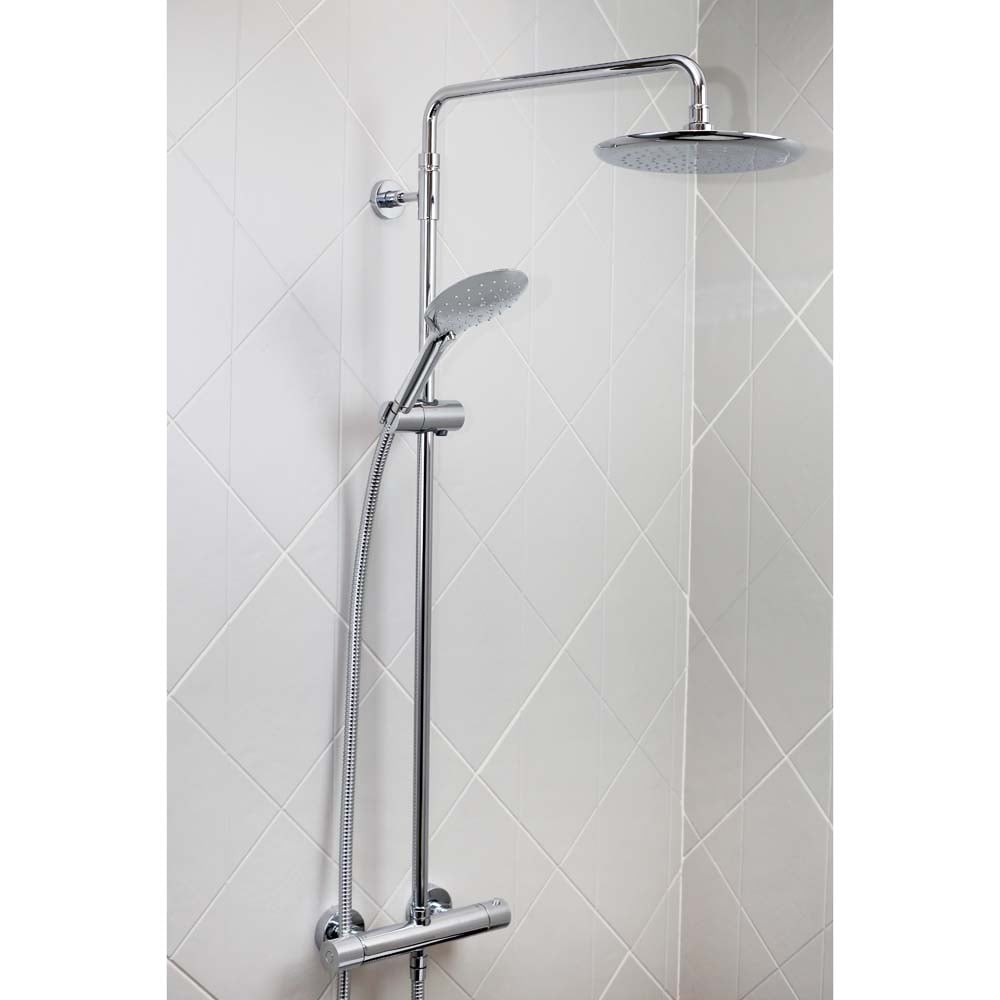

Bristan Carre Exposed Fixed Head Bar Shower with Diverter and Kit CR SHXDIVFF C

Carre Exposed Fixed Head Bar Shower with Diverter and Kit from Bristan

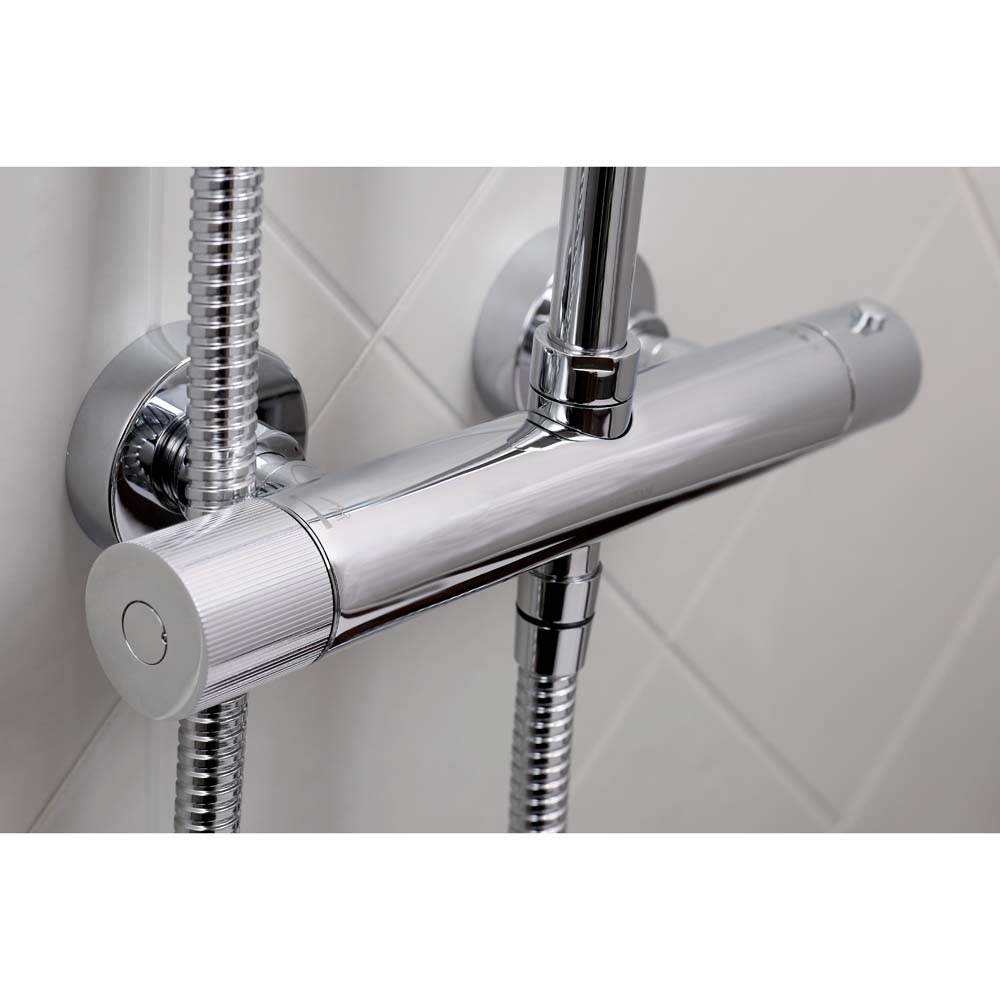

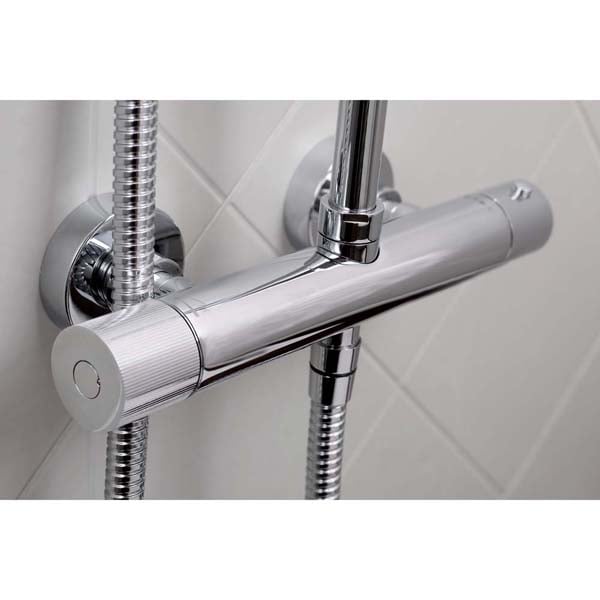

Carre Exposed Fixed Head Bar Shower with Diverter & Kit - Supplied with Bristan's wallmount 12 fixing kit. The simplest solution for installing, maintaining and replacing bar showers, using built in front-of-wall isolation valves. Thermostatic cartridge with preset temperature stop at 38°C, can be over-ridden to a maximum of 46°C. Dual control - flow and temperature are controlled separately. Automatic shut-off in the event of hot or cold water supply failure. Integral diverter to shower handset.

Product Specifications

• Chrome finish
• Contemporary Design
• Body is of brass construction
• Cartridge Type: Thermostatic cartridge
• Suitable for all plumbing systems, preferably balanced
• Inlet Connection: 15mm compression
• Outlet Connection: G 1/2"
• Water Pressure: Min 0.5bar, Max. 5.0bar
• Dimensions for Fitting: 150mm inlet centres

Additional Information

• Dual control - flow and temperature are controlled separately, giving accurate control of both.
• Thermostatic cartridge maintains showering temperature to +/- 1°C by compensating for changes in the incoming water temperature and pressure giving the stable outlet temperature.
• Automatic shut off in the event of hot or cold water supply failure, thus reducing the risk of scalding.
• Factory set to a maximum of 38°C to eliminate the ability to select an unsafe temperature - this can be manually over-ridden up to 46°C to suit user preference.

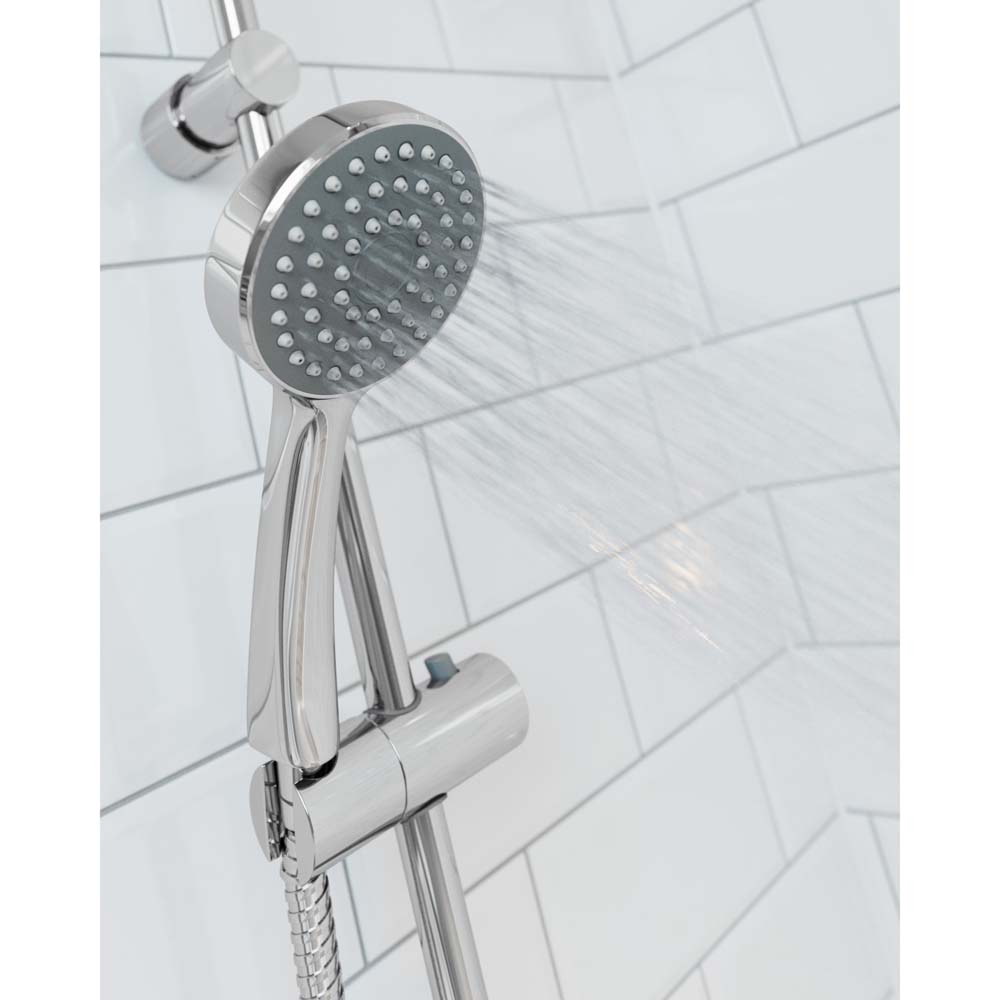

• Supplied with 1.5m hose, single function handset and 200mm rose, both with rub clean nozzles.
• Utilises unique fast fit system - WMNT10 C
• Chrome plated to BSN 248

• Bristan Carre Exposed Fixed Head Bar Shower with Diverter and Kit CR SHXDIVFF C Datasheet (PDF)

• Bristan Carre Exposed Fixed Head Bar Shower with Diverter and Kit CR SHXDIVFF C Fitting Instructions (PDF)

Carre Exposed Fixed Head Bar Shower with Diverter and Kit CR SHXDIVFF C - Thanks to exact construction Bristan offers a quality component which combines dependable build with an adorable appearance. As always with HomeSupply you can purchase a Bristan Carre Exposed Fixed Head Bar Shower with Diverter and Kit CR SHXDIVFF C at a discount price and be assured of great customer service.
