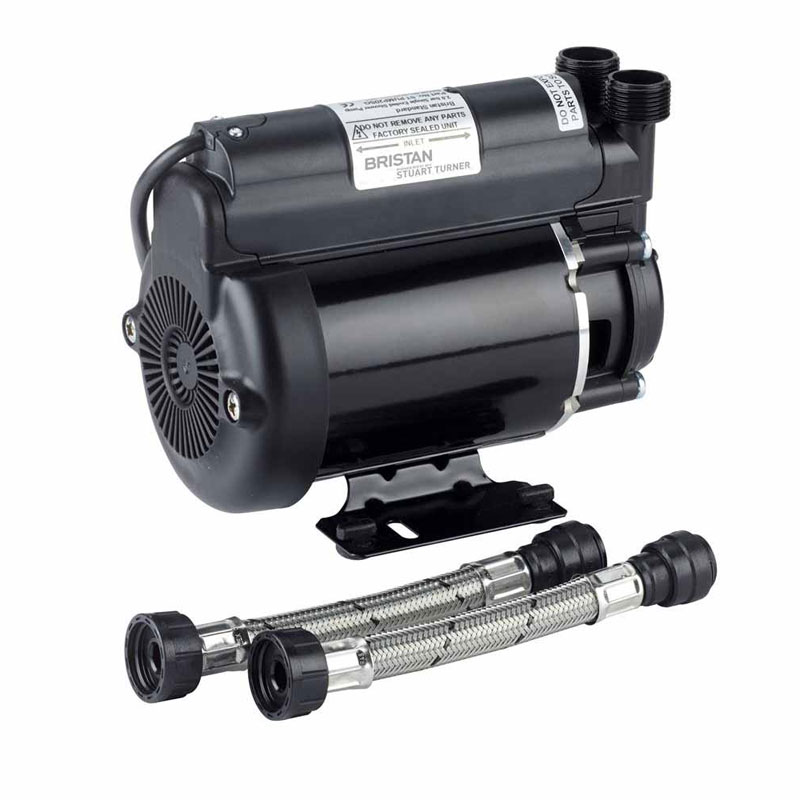

Bristan 2 Bar Single ST PUMP20SG

2 Bar Single from Bristan

2.0 Bar Single Ended Shower Pump By Stuart Turner - Single impellar for boosting one water supply. High boost performance. Low noise-fitted with anti-vibration feet. Min inlet water temperature - 4°C. Max inlet water temperature - 65°C.

Product Specifications

• Stuart Turner single speed twin impeller pump
• Power 230 Volts AC
• Power Consumption: 215 Watts Power
• Inlet Connections: Flexible hose - 15mm push fit
• Outlet Connections: Flexible hose - 15mm push fit
• Pump Rating: 2 bar / 17 LPM
• Motor Rating: 30 minutes on / 30 minutes off
• Supply: Suitable for gravity systems only
• Max head: 10 metres
• Max head (closed valve): 19 metres Max head (closed valve)
• Max working pressure: 3.0 bar

Additional Information

• Single impeller for boosting one water supply
• Fully automatic flow switch control - pump automatically starts when flow of water exceeds 0.8 litres per minute.
• Pump rated at 2 bar pressure equivalent to 20 metres head height.
• High boost performance
• Low noise - fitted with anti-vibration feet
• Min inlet water temperature - 4°C
• Max inlet water temperature - 65°C
• Max number of starts per hour - 60
• Max ambient air temperature - 40°C

• Bristan 2 Bar Single ST PUMP20SG Datasheet (PDF)

• Bristan 2 Bar Single ST PUMP20SG Fitting Instructions (PDF)

2 Bar Single ST PUMP20SG - As a result of precise design Bristan provides an excellent component that blends reliable build with a first-rate look. As always with HomeSupply you can own this Bristan 2 Bar Single ST PUMP20SG at a competitive price and benefit from our respected customer service.
