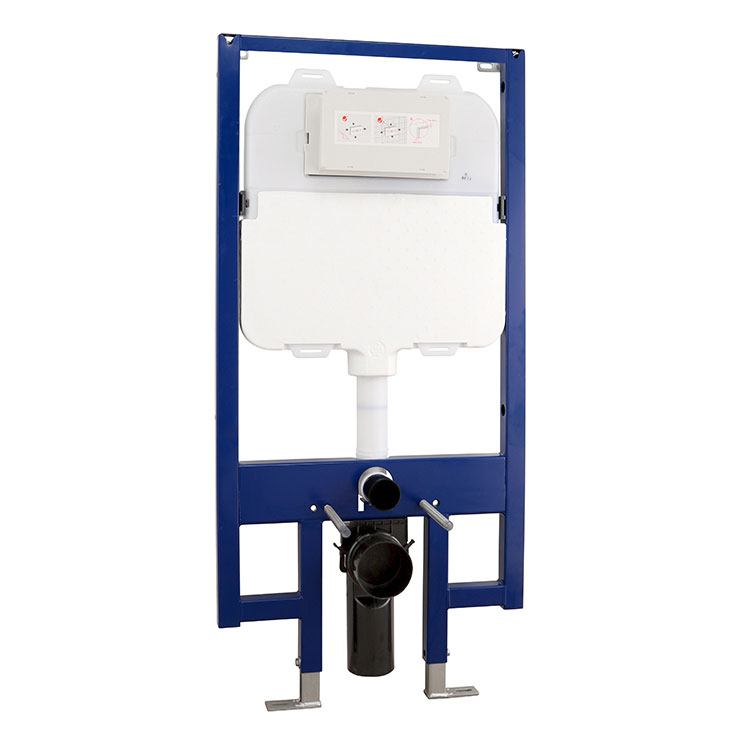

Abacus Wall Mounted Slimline WC Frame and Dual Flush Cistern 1180mm

Easi Plan 1180mm Slimline Wall Mounted WC Frame and Cistern by Abacus

This wall mounted toilet frame includes a full pre wall installation bolt kit and quick fix nuts, sparing you the hassle of running to your nearby plumbing supply store for any additional components.

Abacus Frame Features

• Designed for use with wall hung toilets

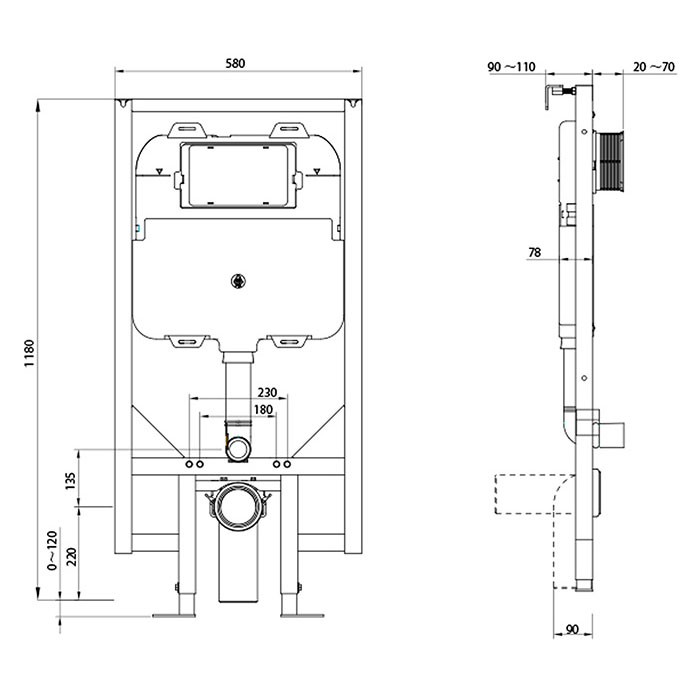

• Slimline frame is supplied with pre wall installation bolt kit which is adjkustable from 90mm to 110mm depth
• The wall bracket and top of frame are designed for easy shelf installation
• Includes straight and angled soil pipe
• Height adjustable legs (120mm)
• Abacus frames are fully tested to 400kg support weight
• 10 year warranty against manufacturing defects (upon registration)

Abacus Cistern Features

• WRAS approved dual flush cistern with front access (only 80mm deep)
• Cistern provides a full 6L/3L flush as standard - can be reduced to 4.5L/3L if required

Installation Instructions

• Abacus Easi Plan (EPWC-30-2005) Wall Hung Toilet Frame Installation Instructions (PDF)

Abacus Flush Plates

Abacus Flush Plates

The cistern will have to be used with an Abacus flush plate Click Here to view available options.
