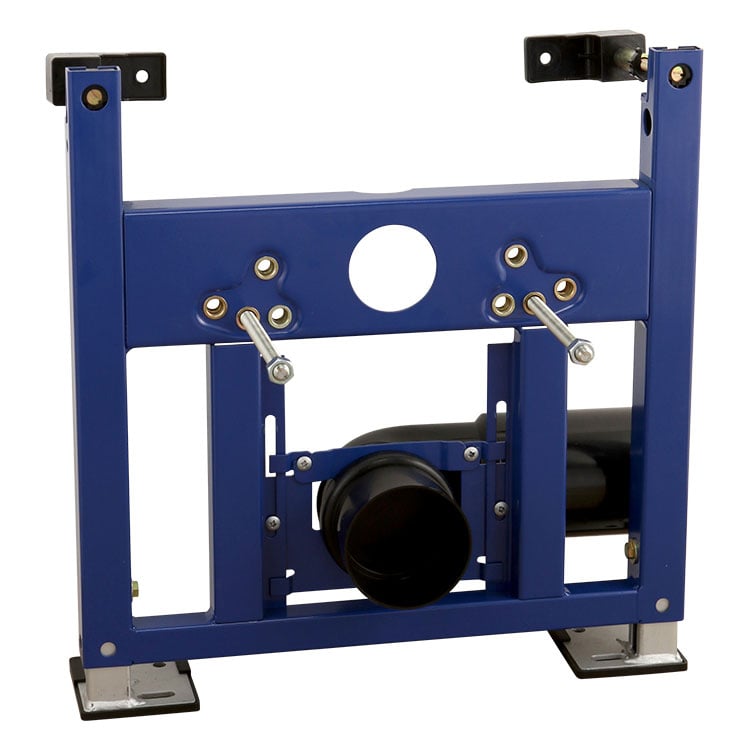

Abacus Low Height Pan Fixing Frame 520mm

Easi Plan 520mm Low Height Pan Fixing Frame by Abacus

This toilet frame includes a full pre wall installation bolt kit and quick fix nuts, sparing you the hassle of running to your nearby plumbing supply store for any additional components.

Abacus Frame Features

• Designed for use with wall hung toilets and wall hung bidets
• Can be installed behind a wall and inside fitted furniture units
• Supplied complete with extension bolt set and quick fix nuts
• Easy to install wall brackets for vertical or horizontal fixing
• The wall bracket and top of frame are designed for easy shelf installation
• Height adjustable legs (0-280mm) with rubber sound deadening pads
• Large feet for easy rear fixing (designed for UK timber floor)
• Abacus frames are fully tested to 400kg support weight
• 10 year warranty against manufacturing defects (upon registration)

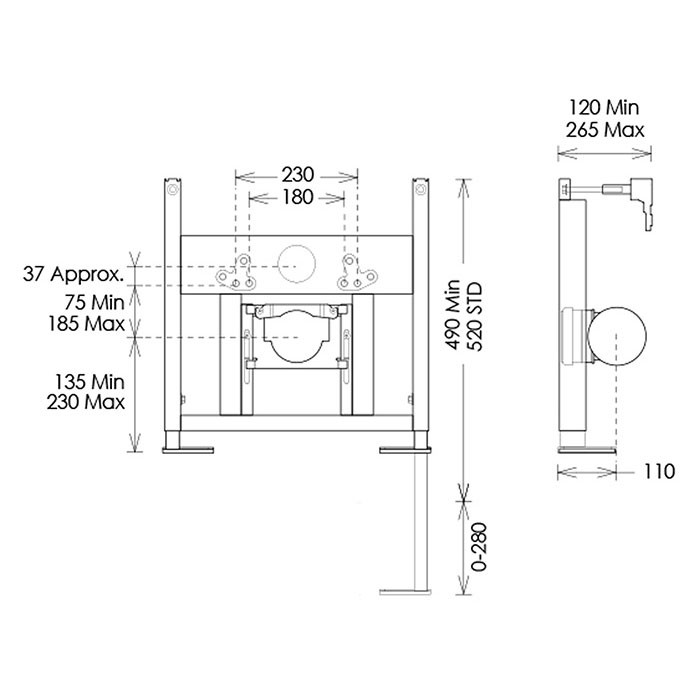

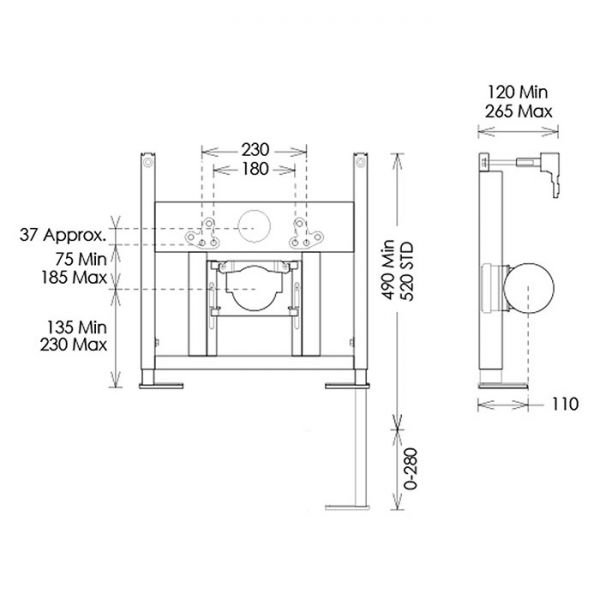

Abacus Frame Specifications

• Width: 500mm
• Height (adjustable): 520-770mm
• Depth (adjustable): 120-265mm
• WC pan support bolt centres: 230 and 180mm

Installation Instructions

• Abacus Easi Plan (EPWC-20-0005) Toilet Frame Installation Instructions (PDF)

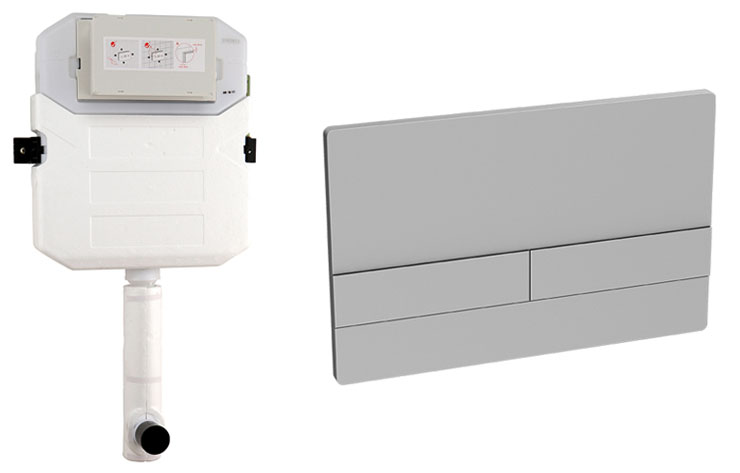

Abacus Concealed Cisterns

Abacus Cisterns

This frame will have to be used with a concealed cistern Click Here to view available options.

Low Height Pan Fixing Frame 520mm - Thanks to their scrupulous composition Abacus delivers an impressive, capable item which combines consistent build with an eye-catching look. By choosing HomeSupply you can own the Abacus Low Height Pan Fixing Frame 520mm at a competitive price and be assured of well-known customer service.
