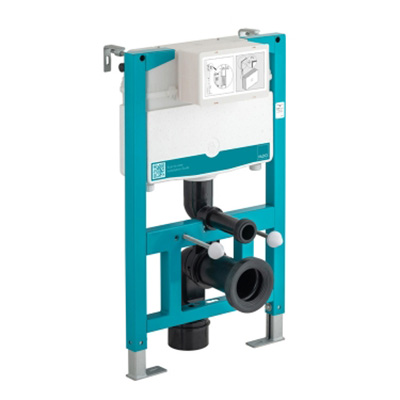

Vado Short 825mm Toilet Frame and Cistern

Vado Short 825mm Frame and Cistern

Concealed frames, cisterns and flush plates are a stylish alternative to traditional toilet cisterns, designed for ease of fit, ease of use and provide a minimalistic finish in all bathroom design schemes.

VADO's cisterns and frames have been designed to save water, maximise space and offer installation flexibility for a variety of bathroom layouts.

Vado Frame Features

• Designed to accommodate wall hung toilet pans
• Steel frame has a corrosion resistant, durable coating
• Flush plate can be mounted to the front or the top of the frame
• Flush volume pre-set to 6/3 litres with the option to reduce to 4/2.6 litres
• Compatible with a wide variety of toilets, high weight bearing frame of 400kg
• Engineered with industry-leading, WRAS approved componentry
• Block wall and stud frame fixing brackets included
• 6 year manufacturer guarantee

Additional Information

• 250mm leg height adjustment
• 30mm soil pipe height adjustment
• Flush plate depth tolerance of 70mm
• 180mm & 230mm width centres to support wall hung toilet
• Integral internal 1/4 turn lever isolation valve
• Finished height fixing location marking
• Integral internal debris filter
• Side mounted 1/2" inlet

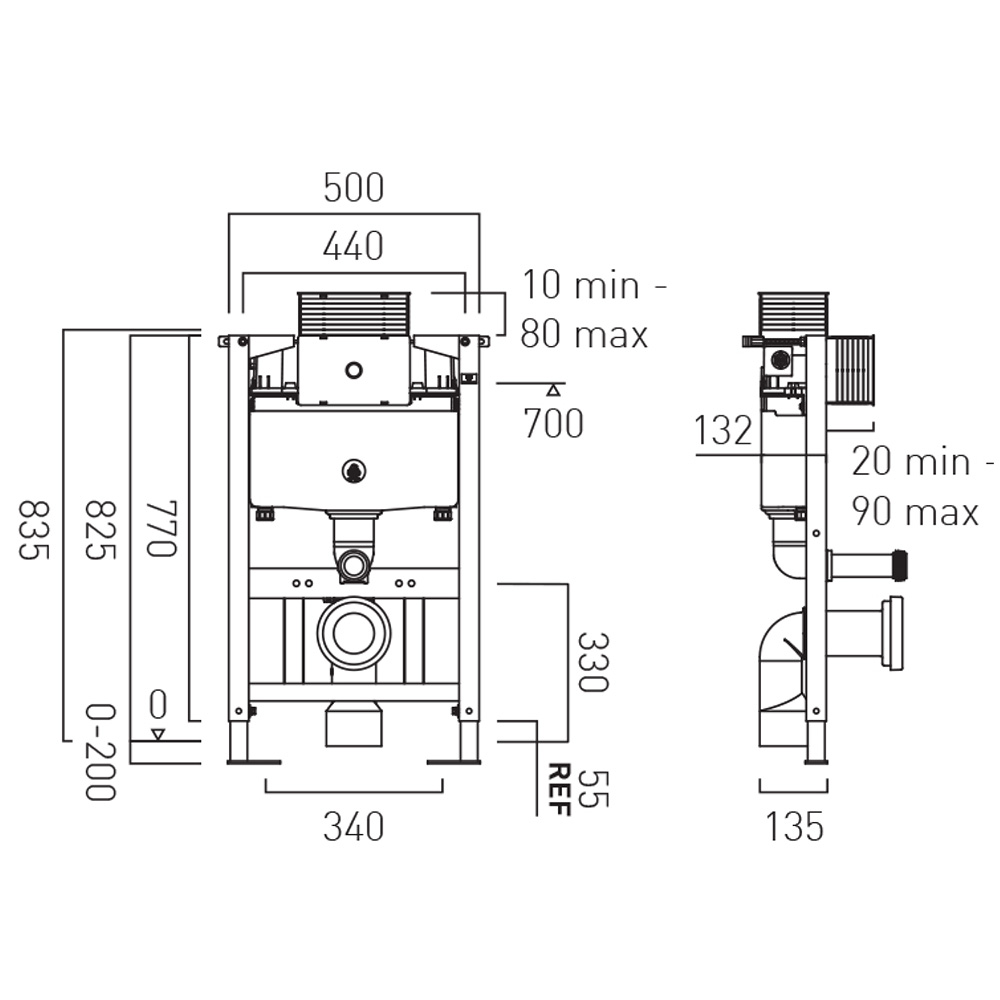

Vado Frame Sizes

• Wall Mounted Flush Plate - 500 (W) x 825 (H) x 155mm (D)

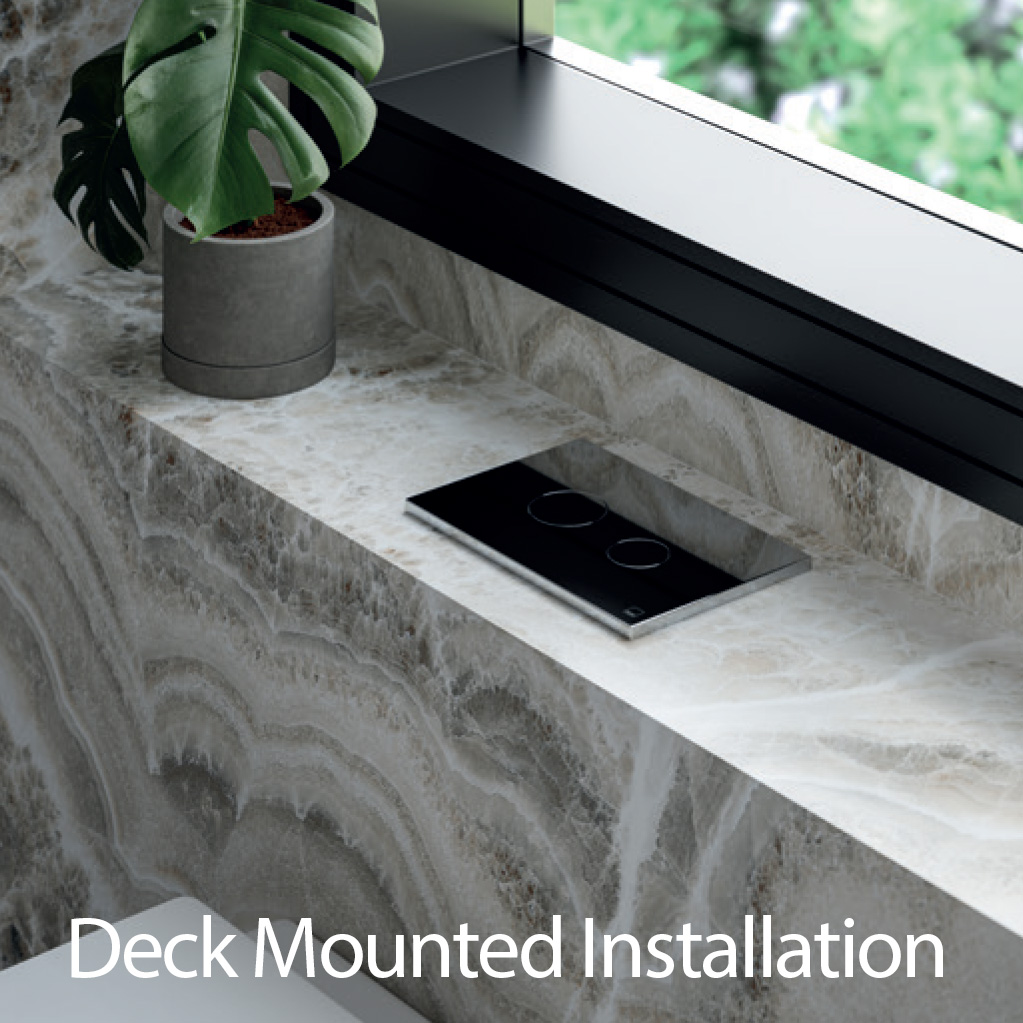

• Deck Mounted Flush Plate - 500 (W) x 835 (H) x 135mm (D)

Vado Flush Plates

Square - Chrome

Square - Brushed Black

Square - Brushed Gold

Square - Brushed Nickel

Round - Chrome

Round - Brushed Black

Round - Brushed Gold

Round - Brushed Nickel

Installation Instructions

• Vado WG-095S-F/C Toilet Frame Installation Instructions (PDF)
