Kudos Connect2 White 1600 x 800 Rectangular Shower Tray

Kudos Connect2 White Rectangular Shower Tray 1600mm x 800mm

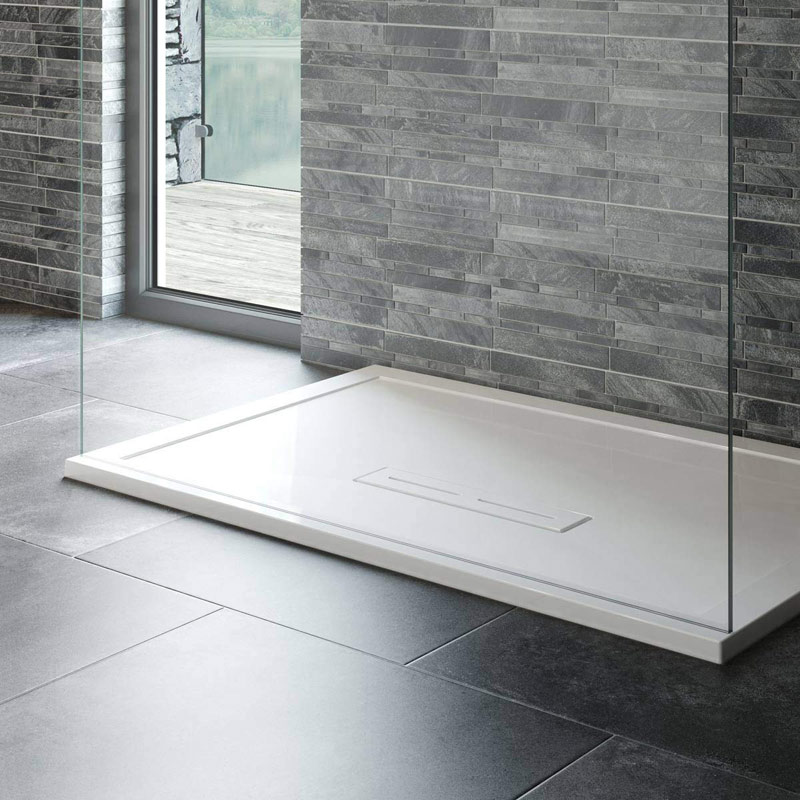

The Connect2 shower trays are a stylish and innovative showering solution designed, developed and manufactured in the UK by Kudos. The unique dual offset waste positions ensure an obstruction free waste connection, eliminating the need to cut joists or raise the tray onto a plinth. With guaranteed compatibility with all standard joist sizes and spans, the Connect2 trays promise hassle free installation.

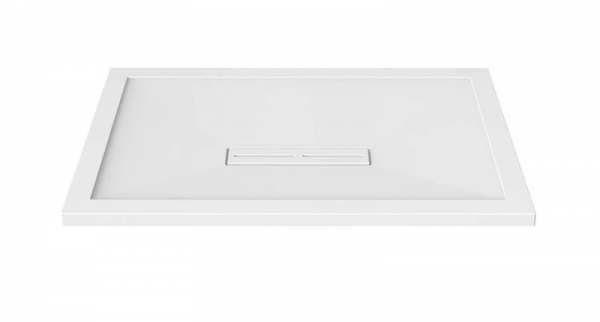

This high gloss white shower tray has a scratch and stain resistant surface. Optional shower wastes are available and you can install either one or two. Each is rated at 35 litres per minute and features a magnetically secured cover. This tray is made using structural resin bonded stone filler making it exceptionally stable and durable.

Kudos Connect2 Shower Tray Features

• White finish
• Constructed from durable stone resin
• Rectangular shower trays are designed for use with shower doors or walk in panels
• Optional wastes available - this tray can be fitted with either a single waste or a dual waste system.
• Lifetime Kudos guarantee

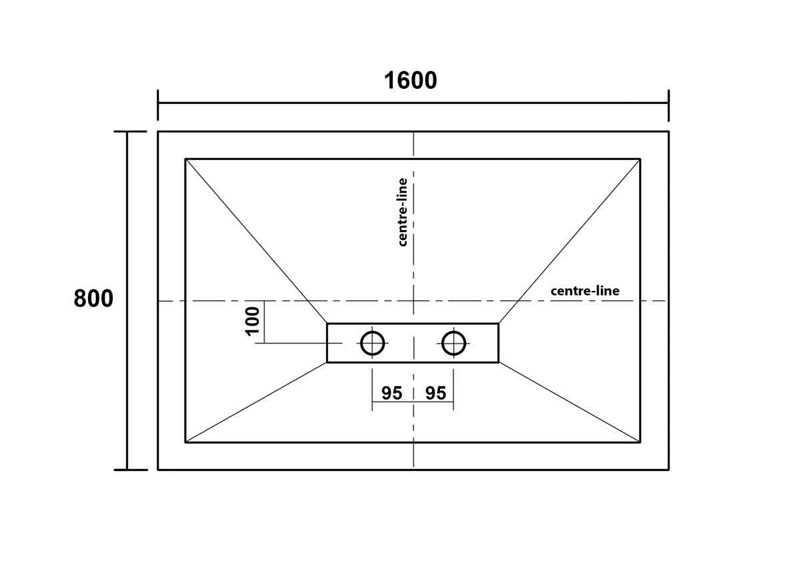

Kudos Connect2 Shower Tray Specifications

• Length: 1600mm
• Width: 800mm
• Height: 35mm
• Product code: C2T16080T
• Kudos Connect2 Shower Tray Installation Sheet (PDF)

Additional Information

• The shower tray material provides a high gloss white finish that is not only durable but also resistant to impact damage and staining
• The unique design eliminates the need to cut joists or lift the tray onto a plinth - The Connect2 trays are guaranteed to work with all standard joist sizes and spans
• The reinforced waste cover is magnetically secured, comfortable to stand on and easy to remove for cleaning
• The slim design, standing at just 35mm high, makes stepping in and out effortless

Kudos Connect2 Dual Waste Installation

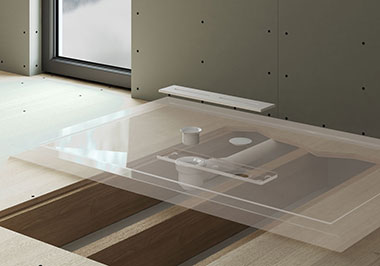

The Connect2 trays feature a distinct design that guarantees unobstructed waste connection, accommodating various joist positions and directions, aligned with industry standards of 400/450/600mm increments specified in the NHBC standards 2018.

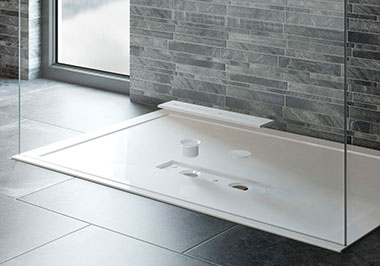

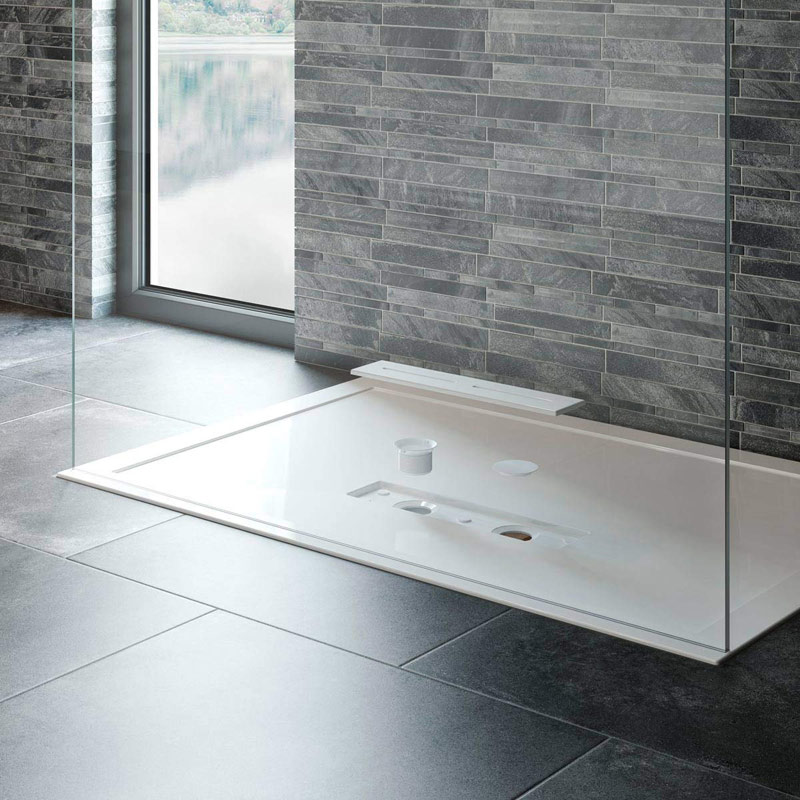

Connect2 trays come equipped with a high-flow waste outlet and a blanking plug that can be secured using solvent weld (not included), or an additional waste can be purchased.

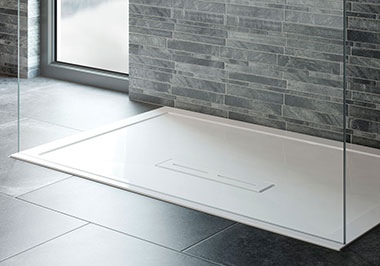

Connect2 trays come with a sleek, colour matched linear waste cover that is magnetically secured and reinforced for enhanced comfort and stability when walked upon.

Kudos Connect2 Installations

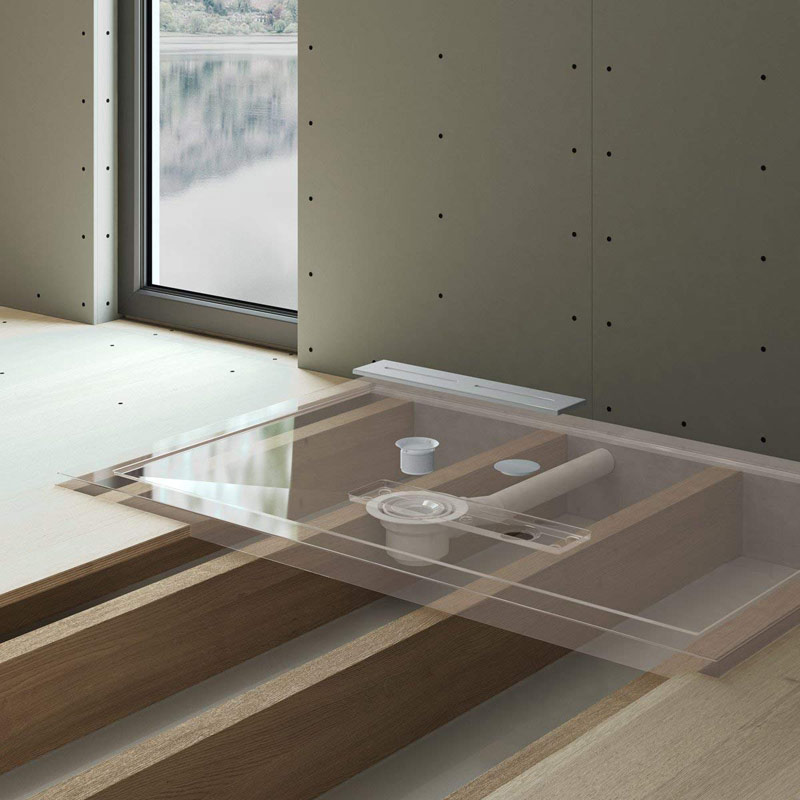

Whether square, rectangular or quadrant, the connect2 trays will allow you to connect the waste fitting without the need to reposition joists or raise the tray onto a plinth.

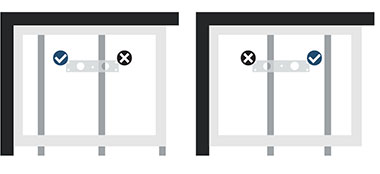

Where joists run parallel to the width of the tray, at least one hole will always be clear.

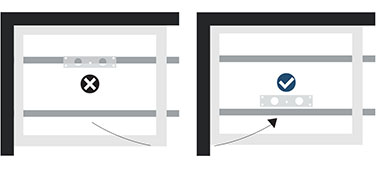

Where joists run parallel to the length of the tray and both holes are obstructed, simply turn the tray 180 degrees. The unique offset position will ensure both will become free.

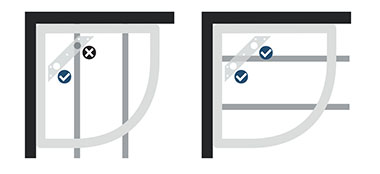

With the unique Connect2 design even Quadrant and the Kudos unique full curve trays have the ability to avoid joists.

Kudos Flexi-Seal

Kudos recommend using Flexi-Seal with installation of all Kudos trays. Flexi-Seal uses a combination of durable flexible rubber with a waterproof butyl based adhesive to give maximum protection between the application surface and tiles or panel.

Kudos Connect2 Videol
