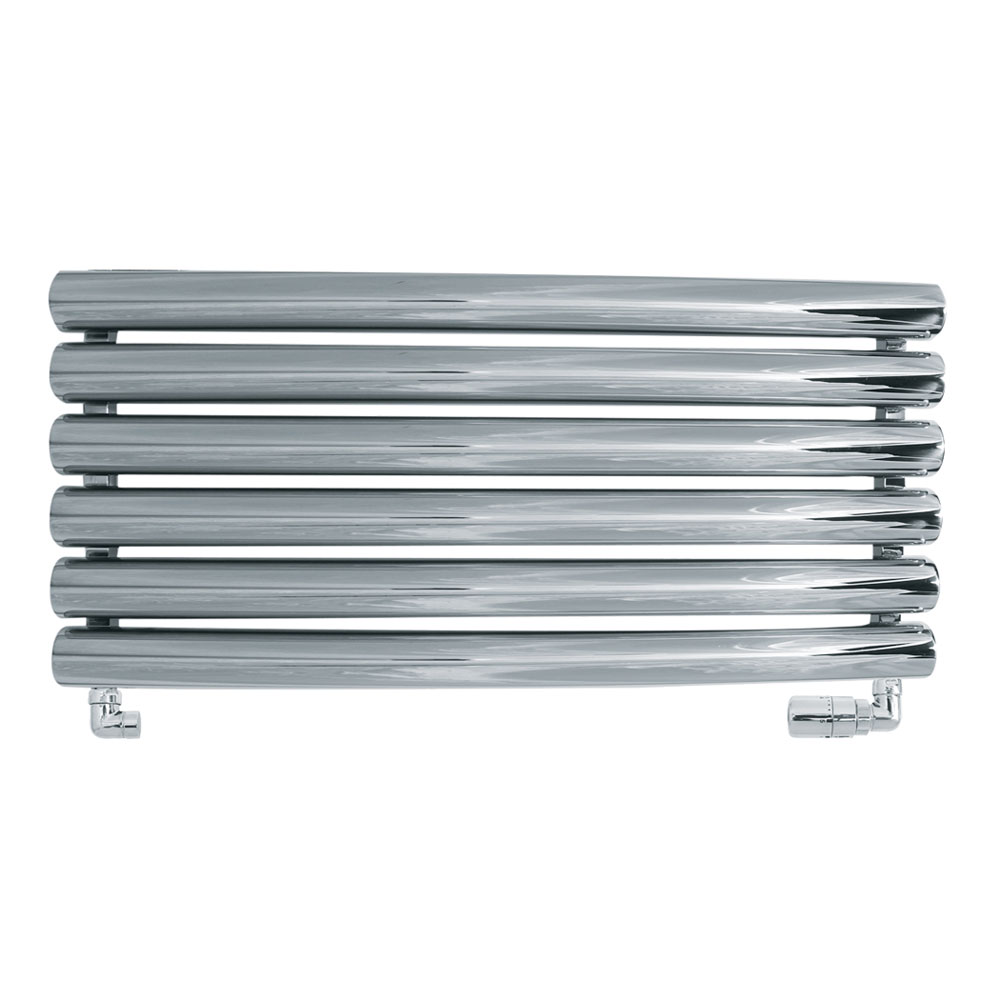

JIS Sussex Mayfield 1010mm x 320mm Designer Stainless Steel Radiator

Mayfield 1010 x 320 Stainless Steel Designer Radiator by JIS

Mayfield Radiator Features

• Manufactured from 304 grade stainless steel with 316 grade stainless welds
• Available in a polished or satin finish
• Wall brackets included
• Optional valves available - This option will show once the finish is selected
• 25 year guarantee
• Part of the Sussex Range by JIS

Please Note: When mounted vertically this radiator has side tappings so the pipe centres are dependent on the type of valves. When using Solar angled valves, the pipe centres will be 395mm. When horizontal the pipe centres are 950mm.

Mayfield Radiator Dimensions & Outputs

• Height: 1010mm
• Width: 320mm
• BTU: 2121
• Watts: 622
• Horizontal Pipe Centres: 950mm
• Vertical Pipe Centres: 395mm (When using Solar angled valves)
• Pipe Centres from Wall: 55-75mm
• Overall Projection: 140-160mm

Optional Valves:

Straight, Angled & Corner Valves:

Solar straight manual valves. For use with pipes coming up from the floorboards.

Solar angled manual valves. For use with pipes coming out of the walls.

Straight TRV thermostatically controlled valves. For use with pipes coming up from the floorboards.

Angled TRV thermostatically controlled valves. For use with pipes coming out of the walls.

Profile corner manual valves. For use with pipes coming out of the walls.

Streamline corner TRV thermostatically controlled valves. For use with pipes coming out of the walls.

JIS Sussex Mayfield 1010mm x 320mm Designer Stainless Steel Radiator - As a result of scrupulous design JIS Radiators brings an impressive component that fuses consistent build with an attractive appearance and thanks to HomeSupply you can own this JIS Sussex Mayfield 1010mm x 320mm Designer Stainless Steel Radiator at a discount price, knowing that you are backed by our well-known customer service.
