Burlington 8 Gold Walk In Shower Panel 900

Burlington 8 Gold 900 Wetroom Walk In Panel - 8mm Glass

The Burlington 8 walk in panels are made from 8mm thick safety glass and feature an easy clean coating. This showering range is very flexible, offering various gold fixings and allowing installation on either a shower tray or directly onto a tiled wetroom floor.

Burlington 8 Walk In Panel Features

• Clear 8mm toughened safety glass with easy clean coating
• Reversible design - can be fitted on the left or right hand side
• Can be installed onto a tray or directly onto a wetroom floor
• Fixings are not included as standard but can be added to match your specifications using the product options
• Suitable for use with power showers
• Lifetime Burlington warranty on the glass (2 years on fixings)

Burlington 8 Walk In Panel Specifications

• Height: 2000mm
• Width: 855mm with 15mm adjustment
• Tested to BS EN 14428 standards

Wall Profile Option

Wall Profile - a vertical profile that secures the glass panel to the wall and offers up to a 15mm adjustment for out of true walls. Required for all installations.

Support Arm Options

Panels up to 500mm can be supported with a wall profile alone, panels 600mm and wider require a bracing bar for additional support.

Glass to Wall Bracing Bar - a 1200mm long bar that connects from the top of the glass to the opposite wall for a secure installation. Can be cut to size to suit your requirements.

Glass to Ceiling Bracing Bar - a 600mm high bar that connects from the top of the glass to the ceiling. Not as robust as wall to glass supports but suits certain installation requirements. Can be cut to size to suit your requirements.

T Bracing Bar - consists of two 1200mm long bars that connect in a T-shape. Designed for use when two wetroom panels are installed in a corner enclosure.

Deflector Panel Option

Deflector panels are used to help prevent water escaping from the showering area.

The Burlington deflector panel is 300mm wide and can fold 180 degrees, 90 degrees to the left and right. It is suitable for both left and right hand installation. Includes a clear seal which gives your walk in shower a seamless appearance.

We do not recommend installing a deflector panel if you have chosen a glass to ceiling bracing bar.

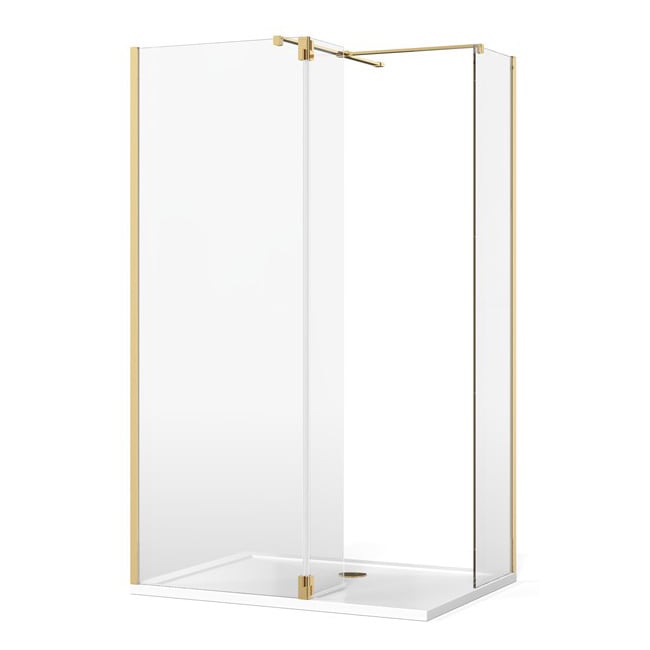

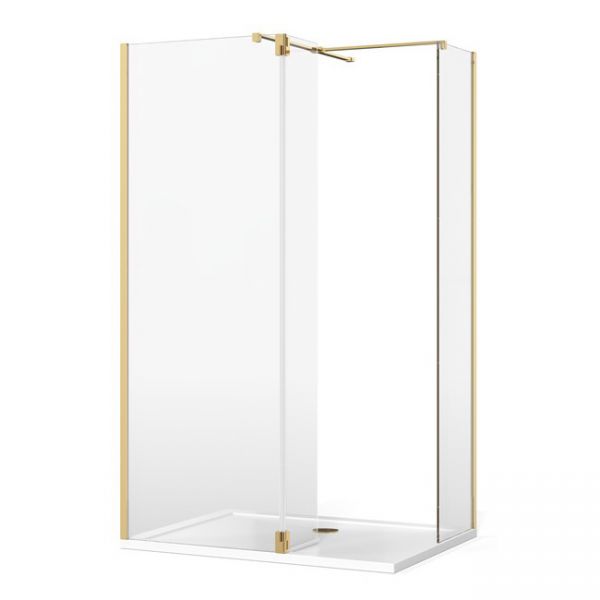

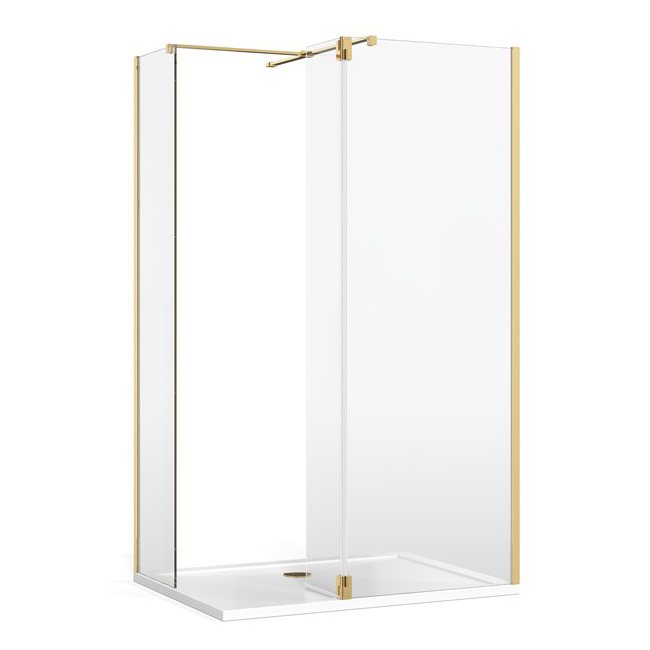

Side Panel Option

An optional side panel can be purchased to create a corner shower enclosure and help prevent water from escaping. Each side panel includes a gold vertical wall profile.

Bottom Glass Seal Option

This panel can be installed onto a surface using silicone or this optional clear seal. The seal is 1400mm long and must be cut to length on installation.

Glass to Glass Corner Seal Option

A glass to glass corner seal is necessary for joining two pieces of glass that come together at a right angle.

Burlington 8 Walk In Shower Configurations

The Burlington walk in panels can be installed in various configurations, the below PDF file shows the most popular ones and provides a list of fixings required for each installation type.

Burlington 8 900 Wide Walk In Panel Specification Sheet

We recommend the shower tray purchased is 500mm longer than the main wet room panel width to allow sufficient space to enter the enclosure.
