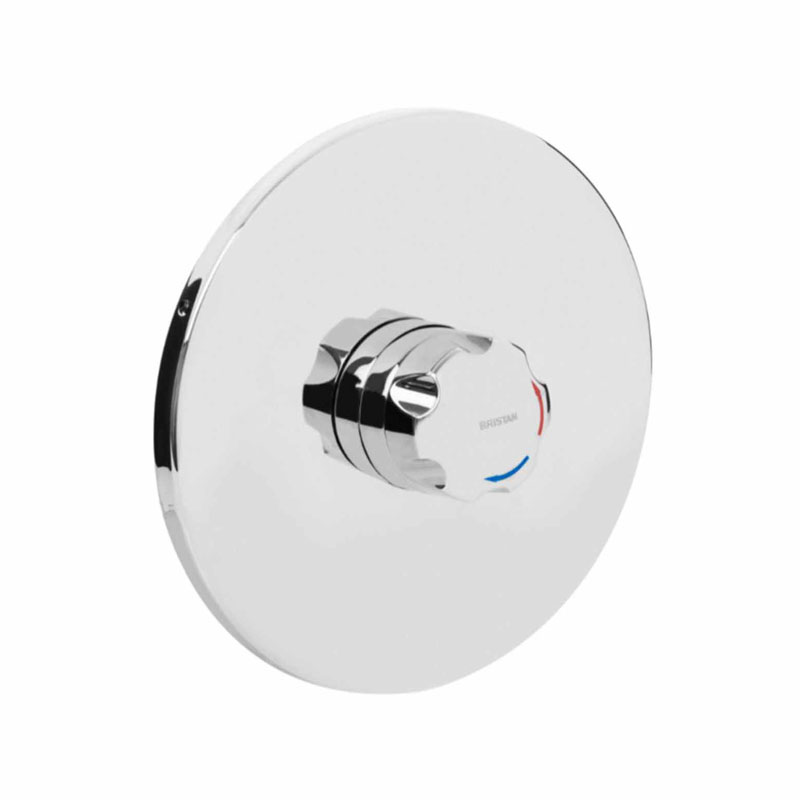

Bristan OPAC thermostatic concealed mini valve with chrome handwheel MINI2 TS1203 CH C

OPAC thermostatic concealed mini valve with chrome handwheel from Bristan

MINI TS1203 CH Shower Valve Chrome - Single sequential control for both temperature and flow. Concealed shower with easy-access cover plate for servicing. Integral isolator and easy clean filters. High performance even at low pressures. Inlet centres of 99mm +/- 1mm.

Product Specifications

• Chrome finish
• Commercial
• Body is of brass construction and is designed to conform to BS EN 1111:1999 (HP) and BS EN 1287:1999 (LP)
• Valve Type: Thermostatic Cartridge
• Suitable for all plumbing systems (Preferably balanced)
• Inlet Connections: 15mm compression elbows
• Outlet Connections: 1/2" BSP
• Working Pressures: Min 0.2bar, Max 8.0bar, Maximum Static Pressure: 10.0 bar
• Dimensions for Fitting: 99mm inlet centres

Additional Information

• Single sequential control for both temperature & flow.
• Anti-vandal stainless steel concealing plate
• Automatic thermostatic shut-off in the event of hot or cold water failure.
• Check valves and serviceable filters as standard
• Supplied as 'valve only' and thus can be customised by choosing accessories from our Pick n Mix showering options. Please see our Product and Price guide for details.
• Inlet centres of 99mm +/- 1mm.
• Chrome plated to BS EN 248.

• Bristan OPAC thermostatic concealed mini valve with chrome handwheel MINI2 TS1203 CH C Datasheet (PDF)

• Bristan OPAC thermostatic concealed mini valve with chrome handwheel MINI2 TS1203 CH C Fitting Instructions (PDF)
