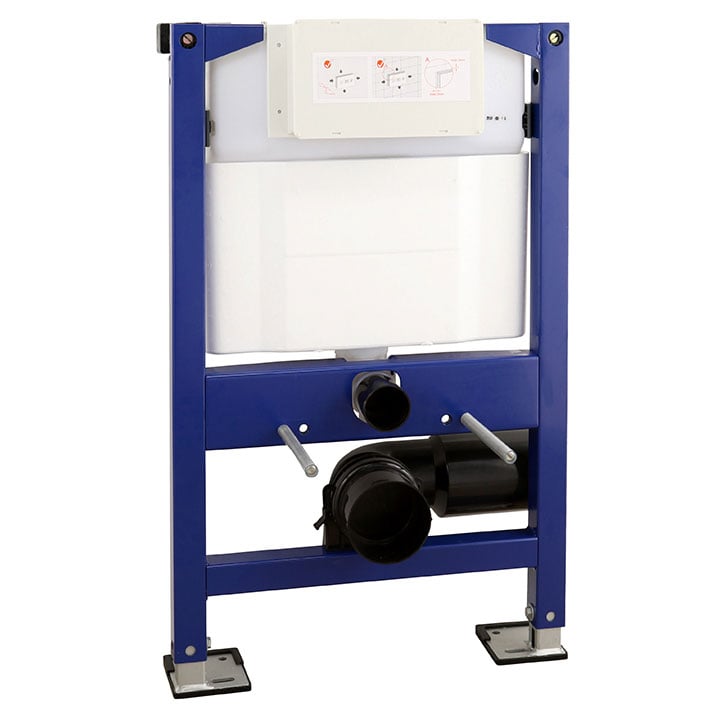

Abacus Wall Mounted WC Frame and Dual Flush Cistern 820mm

Easi Plan 820mm Wall Mounted WC Frame and Cistern by Abacus

This wall mounted toilet frame includes a full pre wall installation bolt kit and quick fix nuts, sparing you the hassle of running to your nearby plumbing supply store for any additional components.

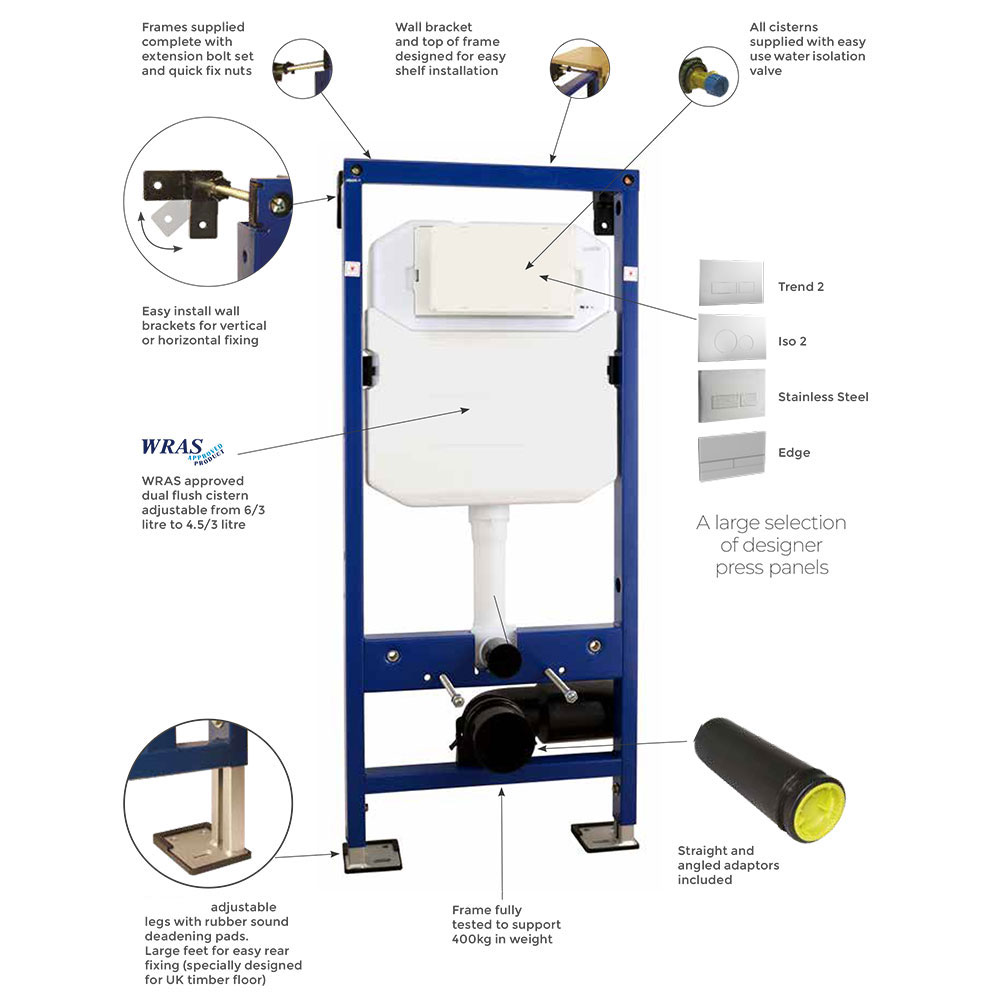

Abacus Frame Features

• Designed for use with wall hung toilets
• Frame is supplied complete with extension bolt set and quick fix nuts
• Easy to install wall brackets for vertical or horizontal fixing
• The wall bracket and top of frame are designed for easy shelf installation
• Includes straight and angled soil pipe adaptors
• Height adjustable legs (280mm) with rubber sound deadening pads
• Large feet for easy rear fixing (designed for UK timber floor)
• Abacus frames are fully tested to 400kg support weight
• 10 year warranty against manufacturing defects (upon registration)

Abacus Cistern Features

• WRAS approved dual flush cistern with front or top access
• Cistern provides a full 6L/3L flush as standard - can be reduced to 4.5L/3L if required

Installation Instructions

• Abacus Easi Plan (EPWC-05-1005) Wall Hung Toilet Frame Installation Instructions (PDF)

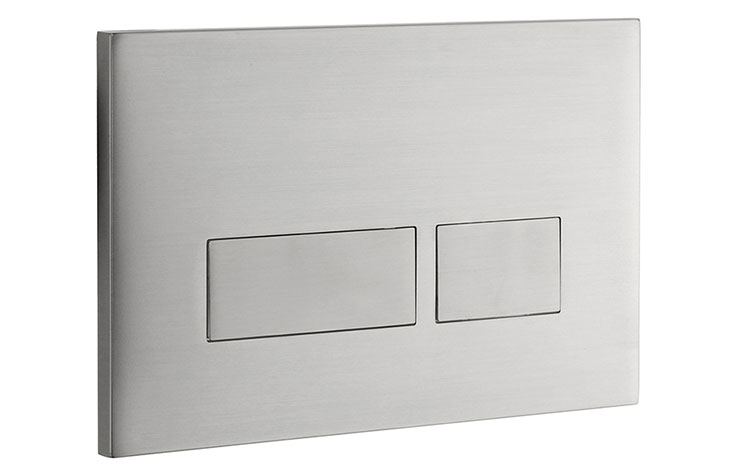

Abacus Flush Plates

Abacus Flush Plates

The cistern will have to be used with an Abacus flush plate Click Here to view available options.

Wall Mounted WC Frame and Dual Flush Cistern 820mm - With careful design Abacus brings an impressive, capable component which combines consistent build with an exceptional appearance. As always with HomeSupply you can buy this Abacus Wall Mounted Toilet Frame and Dual Flush Cistern 820mm at a discounted price and be assured of outstanding customer service.
