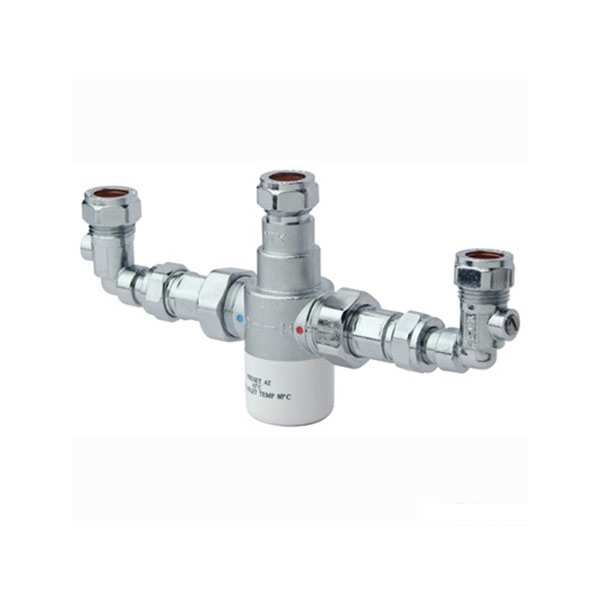

Bristan Gummers 15mm Thermostatic Mixing Valve with Isolation Elbows MT503CP ISOELB

Gummers 15mm Thermostatic Mixing Valve with Isolation Elbows from Bristan

15mm Thermostatic Mixing Valve with Isolation Elbows - Elbows allow the valve to be concealed behind a pedestal. Isolation at mixing point facilitates easy servicing. Automatic shutoff in the event of hot or cold water supply failure. Check valves and serviceable filters as standard. Operates at a maximum pressure differential of 10:1.

Product Specifications

• Main Construction Material: brass
• No of Controls: 1
• Shower Type: thermostatic mixing
• Maximum Hot Water Supply Temperature: 80°C
• Plumbing System Suitability: all, preferably balanced
• Working Pressure Range: Min. 0.1 - Max. 2.0 bar
• Connection Inlet: 15mm
• Connection Outlet: 15mm
• Isolation Valve Included: yes
• Check Valve Included: yes
• WRAS approved

Additional Information

• Elbows allow the valve to be concealed behind a pedestal
• Isolation at mixing point facilitates easy servicing
• Automatic shutoff in the event of hot or cold water supply failure
• Check valves and serviceable filters as standard
• Operates at a maximum pressure differential of 10:1
• High pressure bath fill Part G compliant

• Bristan Gummers 15mm Thermostatic Mixing Valve with Isolation Elbows MT503CP ISOELB Datasheet (PDF)

• Bristan Gummers 15mm Thermostatic Mixing Valve with Isolation Elbows MT503CP ISOELB Fitting Instructions (PDF)

Gummers 15mm Thermostatic Mixing Valve with Isolation Elbows MT503CP ISOELB - As a result of painstaking design Bristan provides a leading component which combines consistent build with a fine appearance. By choosing HomeSupply you can own a Bristan Gummers 15mm Thermostatic Mixing Valve with Isolation Elbows MT503CP ISOELB at a competitive price and be assured of great customer service.
