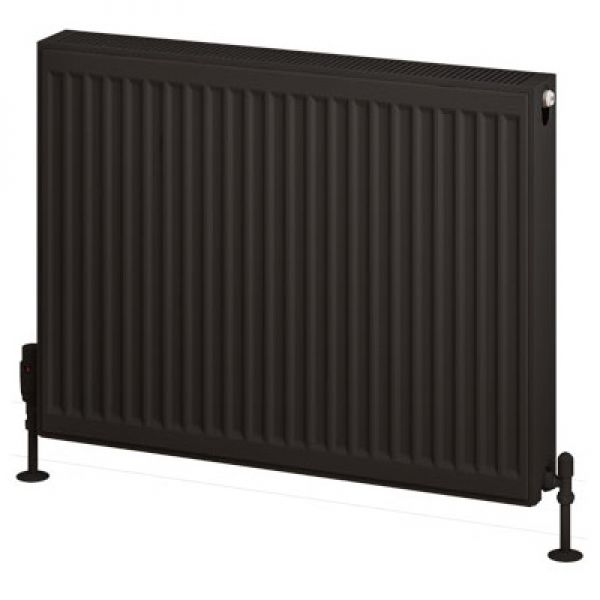

Eastbrook Type 22 600 x 800 Matt Black Central Heating Radiator

Type 22 600 x 800mm Double Panel Double Convector Matt Black Radiator by Eastbrook

All Eastbrook compact panel radiators are individually tested and supplied with a 10 year manufacturer's warranty against any manufacturing or material fault. These radiators have a maximum working pressure of 4 Bars.

Eastbrook Type 22 Radiator Features

• Matt Black finish (RAL 9005)
• Double panel with two rows of convector fins
• Pre fitted top grills and side cover panels
• Supplied complete with concealed wall brackets including air vent and blanking plug
• Features 4 x 1/2" connections - can be fitted with either horizontal or vertical tappings
• Only suitable for hot water central heating systems
• Manufactured & tested to UKCA and CE standards
• 10 year guarantee

Eastbrook Type 22 Radiator Specifications

• Height: 600mm
• Width: 800mm
• Depth: 102mm
• Pipe Centres (width): 800mm + valves
• Pipe Centres (vertical): 545mm
• Pipe centres from wall: 72/84mm
• BTU @ Delta 50: 4480
• Watts @ Delta 50: 1313

Eastbrook Type 22 Downloads

• Eastbrook Type 22 Line Drawings

Type 22 600 x 800 Matt Black Central Heating Radiator - With precise design Eastbrook offers a top quality product which links consistent build with an outstanding finish. As always with HomeSupply you can purchase a Eastbrook Type 22 600 x 800 Matt Black Central Heating Radiator at a competitive price, backed by our leading customer service.
