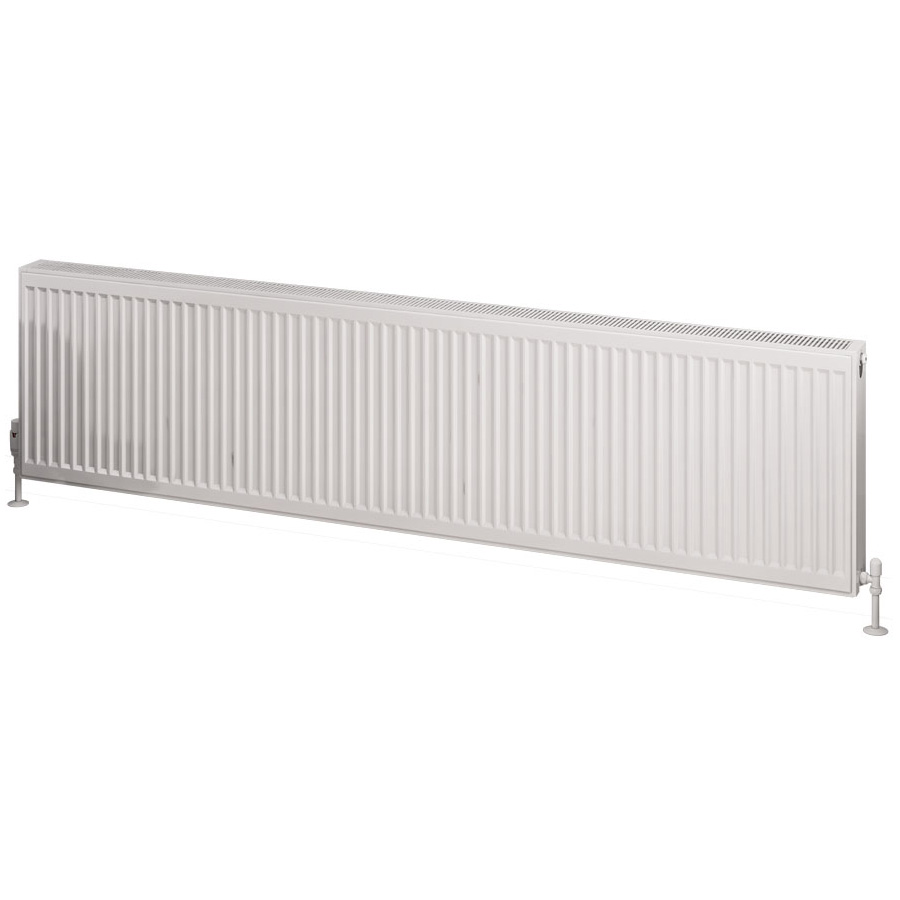

Eastbrook Type 22 500 x 2000 Gloss White Central Heating Radiator

Type 22 500 x 2000mm Double Panel Double Convector Gloss White Radiator by Eastbrook

All Eastbrook compact panel radiators are individually tested and supplied with a 10 year manufacturer's warranty against any manufacturing or material fault. These radiators have a maximum working pressure of 4 Bars.

Eastbrook Type 22 Radiator Features

• Gloss white finish (RAL 9016)
• Double panel with two rows of convector fins
• Pre fitted top grills and side cover panels
• Supplied complete with concealed wall brackets including air vent and blanking plug
• Features 4 x 1/2" connections - can be fitted with either horizontal or vertical tappings
• Only suitable for hot water central heating systems
• Manufactured & tested to UKCA and CE standards
• 10 year guarantee

Eastbrook Type 22 Radiator Specifications

• Height: 500mm
• Width: 2000mm
• Depth: 102mm
• Pipe Centres (width): 2000mm + valves
• Pipe Centres (vertical): 445mm
• Pipe centres from wall: 72/84mm
• BTU @ Delta 50: 9623
• Watts @ Delta 50: 2820

Eastbrook Type 22 Downloads

• Eastbrook Type 22 Line Drawings

Type 22 500 x 2000 Gloss White Central Heating Radiator - Thanks to their scrupulous design Eastbrook delivers a quality, dependable item which couples consistent build with an outstanding appearance. By choosing HomeSupply you can buy the Eastbrook Type 22 500 x 2000 Gloss White Central Heating Radiator at a discounted price and benefit from our leading customer service.
