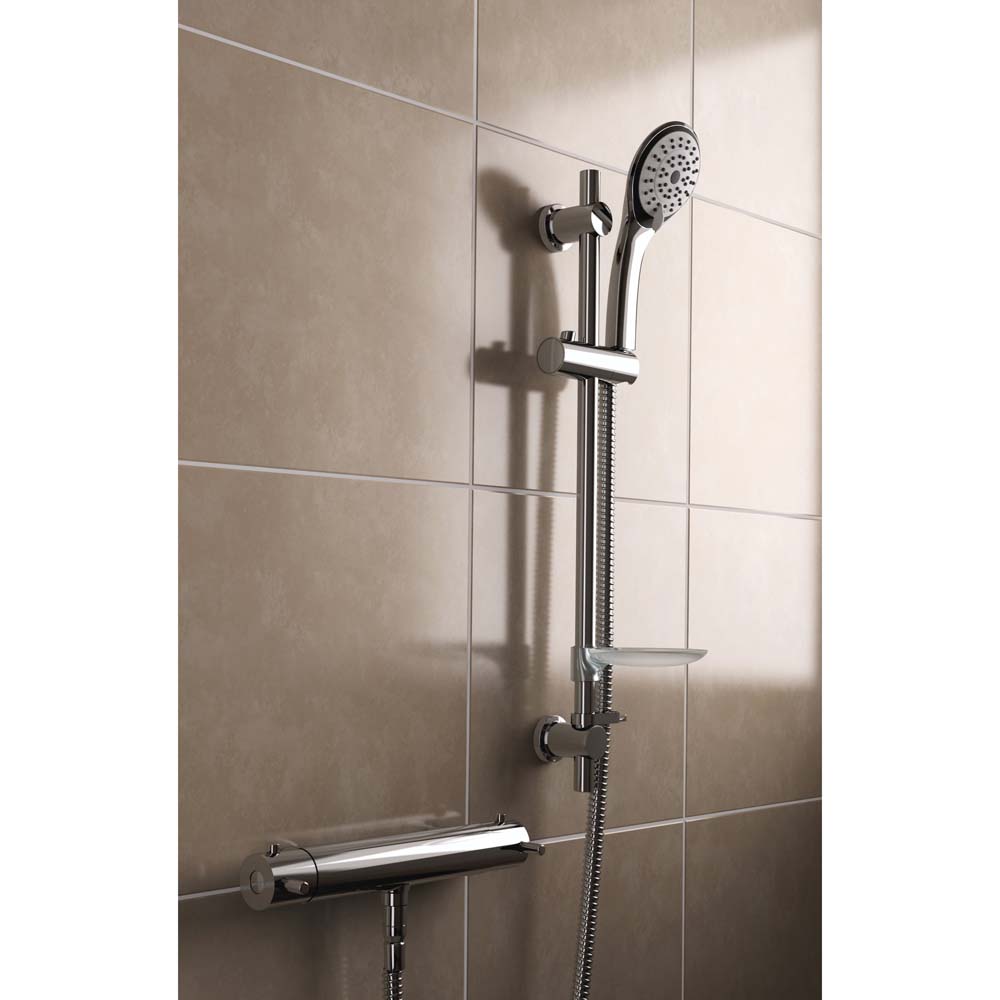

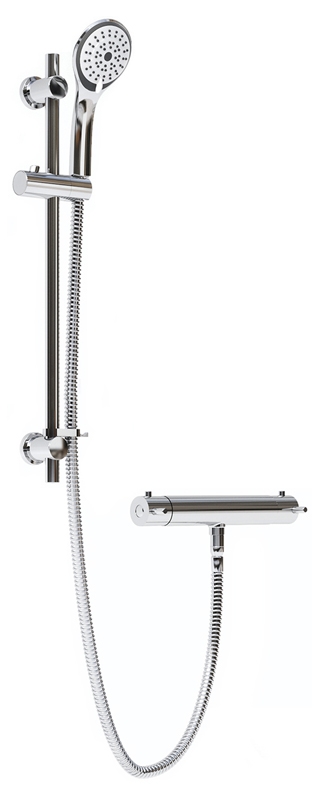

Bristan Prism Bar Shower, Peg handles, fast fit connections, multi mode shower kit. PM SHXMMCTFF C

Prism Bar Shower, Peg handles, fast fit connections, multi-mode shower kit. from Bristan

Prism Safe Touch Bar Shower with Adjustable Kit and Fast Fit Fixings - Supplied with Bristan's wallmount 12 fixing kit. The simplest solution for installing, maintaining and replacing bar showers, using built in front-of-wall isolation valves. Thermostatic cartridge with preset temperature stop at 38°C, can be over-ridden to a maximum of 46°C. TMV2 thermostatic control for a higher level of performance and protection. Unique Safe Touch technology ensures the valves stays cool to the touch while in use. Dual control - flow and temperature are controlled separately.

Product Specifications

• Chrome finish
• Contemporary Design
• Body is of brass construction
• Cartridge Type: Thermostatic Cartridge
• Suitable for all plumbing systems (Preferably balanced)
• Inlet Connections: 15mm compression connections
• Working Pressures: Min 0.2bar, Max 5.0bar
• Maximum Static Pressure 10.0bar

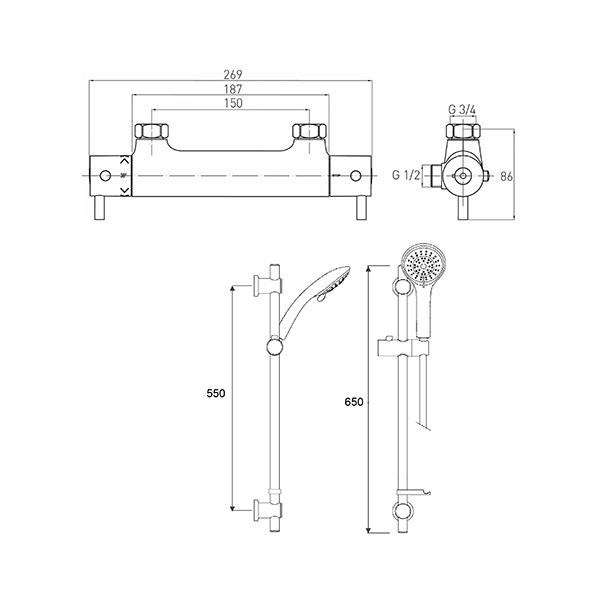

• Dimensions for Fitting: 150mm inlet centres

Additional Information

• Unique Cool Chrome technology ensures the bar valve stays cool to the touch while in use.
• Dual control - Flow and temperature are controlled separately, giving accurate control of both
• Factory set to a maximum of 38°C to eliminate the ability to select an unsafe temperature - this is adjustable to suit user preference and up to a maximum of 46°C.
• Flow control handle incorporates an eco button to save water, this can be overridden by the user.
• Supplied with WMNT10 C fast fit connections.
• Supplied with 1.75m hose, riser rail, hose retainer and multi function handset with rub clean nozzles.
• Chrome plated to BS EN 248

• Bristan Prism Bar Shower with multi mode shower kit PM SHXMMCTFF C Datasheet (PDF)

• Bristan Prism Bar Shower with multi mode shower kit PM SHXMMCTFF C Fitting Instructions (PDF)

Prism Bar Shower, Peg handles, fast fit connections, multi mode shower kit. PM SHXMMCTFF C - As a result of exact design Bristan brings a top quality component that links reliable build with an attractive look. As always with HomeSupply you can buy the Bristan Prism Bar Shower, Peg handles, fast fit connections, multi mode shower kit. PM SHXMMCTFF C at a discounted price and be assured of respected customer service.
