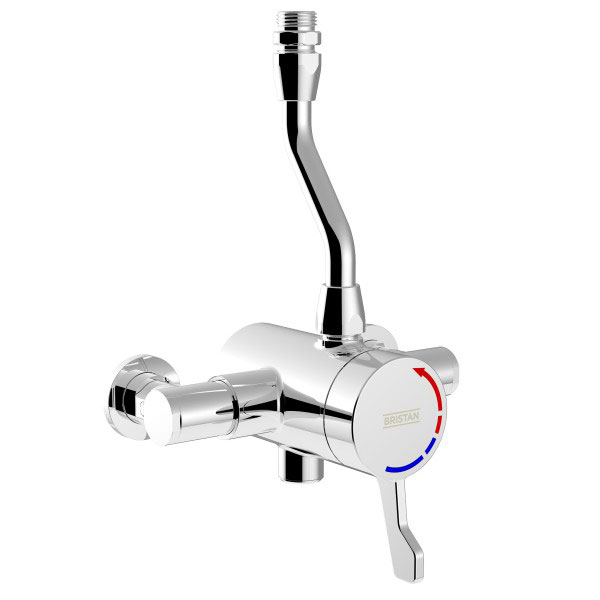

Bristan Opac Top Outlet Exposed Shower Valve with Lever Handle OP TS3650TO EL C

Opac Top Outlet Exposed Shower Valve from Bristan

TS3650 Opac Lever Rigid Riser Shower Vlv - Single sequential control for both temperature and flow. High performance even at low pressure. Automatic shutoff in the event of hot or cold water supply failure. Adjustable isolation inlet elbows allow centres between 140mm-160mm. Integral thermal flushing for infection control.

Product Specifications

• Chrome finish
• Main Construction Material: Brass
• No of Controls: 1
• Shower Type: Exposed
• Valve/Cartridge Type: Sequential Cartridge
• Plumbing System Suitability: Suitable for all plumbing systems
• Minimum Dynamic Pressure: Min: 0.2 bar, Max: 5 bar
• Connection Inlet: 15mm Compression
• Connection Outlet: G 1/2"
• Isolation Valve Included: Yes
• Check Valve Included: Yes

Additional Information

• Single sequential control for both temperature and flow
• Automatic shutoff in the event of hot or cold water supply failure

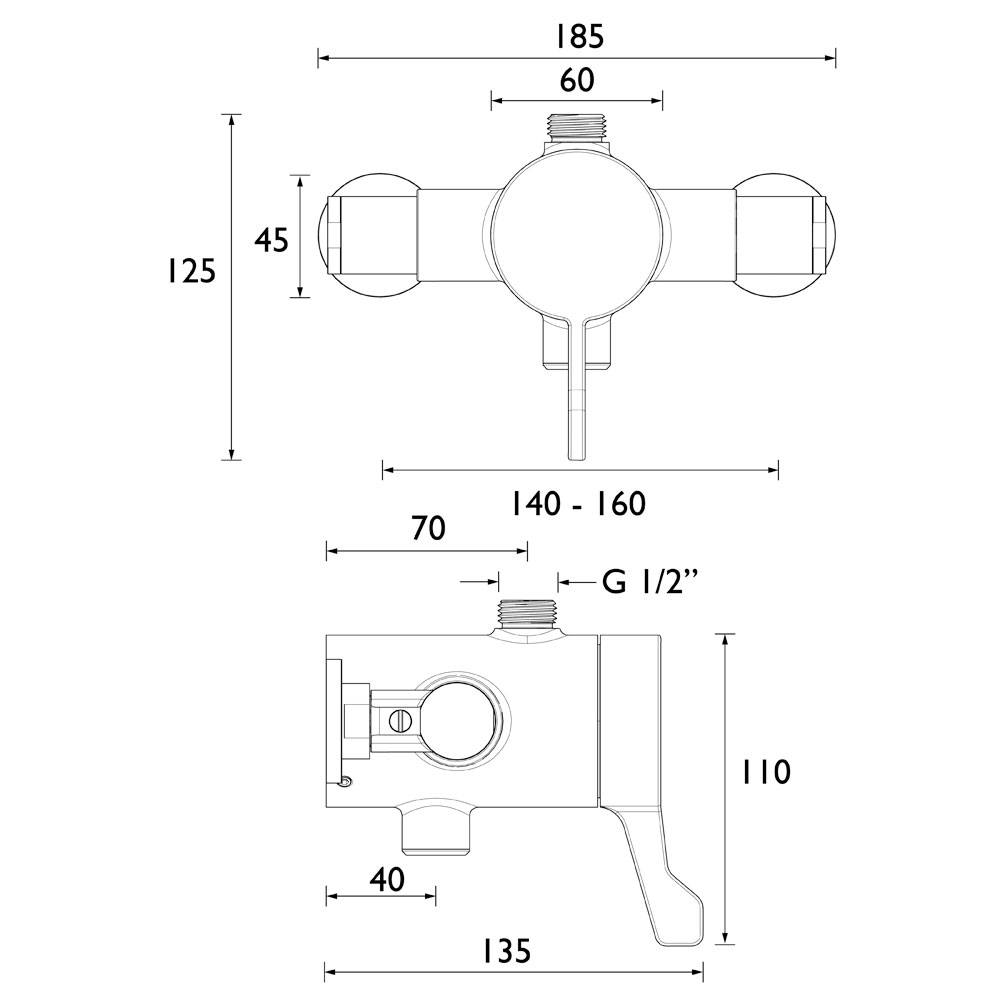

• Adjustable isolation inlet elbows allow centres between 140mm-160mm
• Integral thermal flushing for infection control
• High performance even at low pressure
• Easy isolation and filter removal
• TMV3 and TMV2 certified
• WRAS approved

• Bristan Opac Top Outlet Exposed Shower Valve with Lever Handle OP TS3650TO EL C Datasheet (PDF)

• Bristan Opac Top Outlet Exposed Shower Valve with Lever Handle OP TS3650TO EL C Fitting Instructions (PDF)

Opac Top Outlet Exposed Shower Valve with Lever Handle OP TS3650TO EL C - Thanks to their thorough design Bristan offers an impressive item that couples consistent build with a fine appearance. By choosing HomeSupply you can buy the Bristan Opac Top Outlet Exposed Shower Valve with Lever Handle OP TS3650TO EL C at a discounted price.
