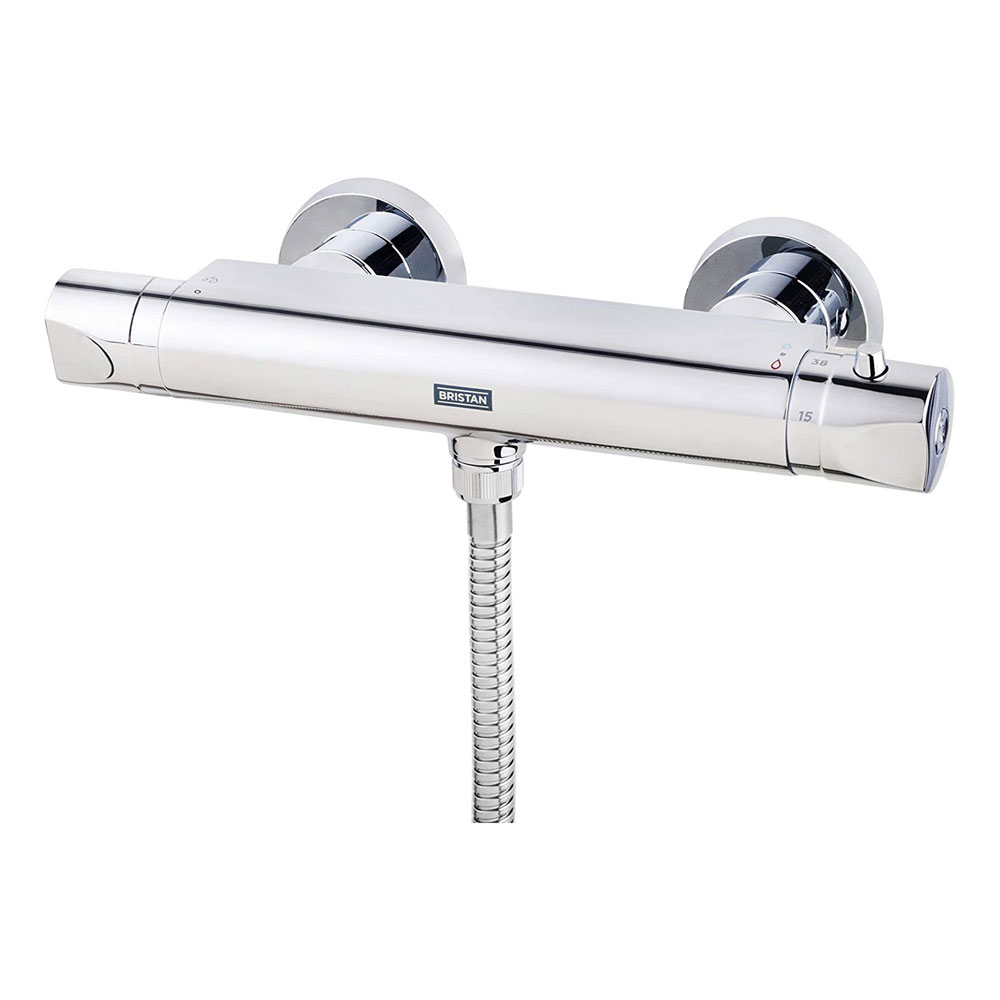

Bristan Artisan Thermostatic Surface Mounted Bar Shower Valve and Fast Fit Connections AR2 SHXVOFF C

Artisan Thermostatic Surface Mounted Bar Shower Valve and Fast Fit Connections from Bristan

Artisan Thermostatic Surface Mounted Bar Shower Valve & Fast Fit Connections - Supplied with Bristan's wallmount 12 fixing kit. The simplest solution for installing, maintaining and replacing bar showers, using built in front-of-wall isolation valves. Thermostatic cartridge with preset temperature stop at 38°C, can be over-ridden to a maximum of 46°C. Flow control handle incorporates an eco button to save water, this can be overridden by the user. 15mm inlet connections. TMV2 thermostatic control for a higher level of performance and protection.

Product Specifications

• Chrome finish
• Contemporary Design
• Body is of brass construction
• Cartridge Type: Thermostatic Cartridge
• Suitable for all plumbing systems (Preferably balanced)
• Inlet Connections: 15mm compression connections
• Outlet Connection: G1/2"
• Working Pressures: Min 0.2bar, Max 5.0bar

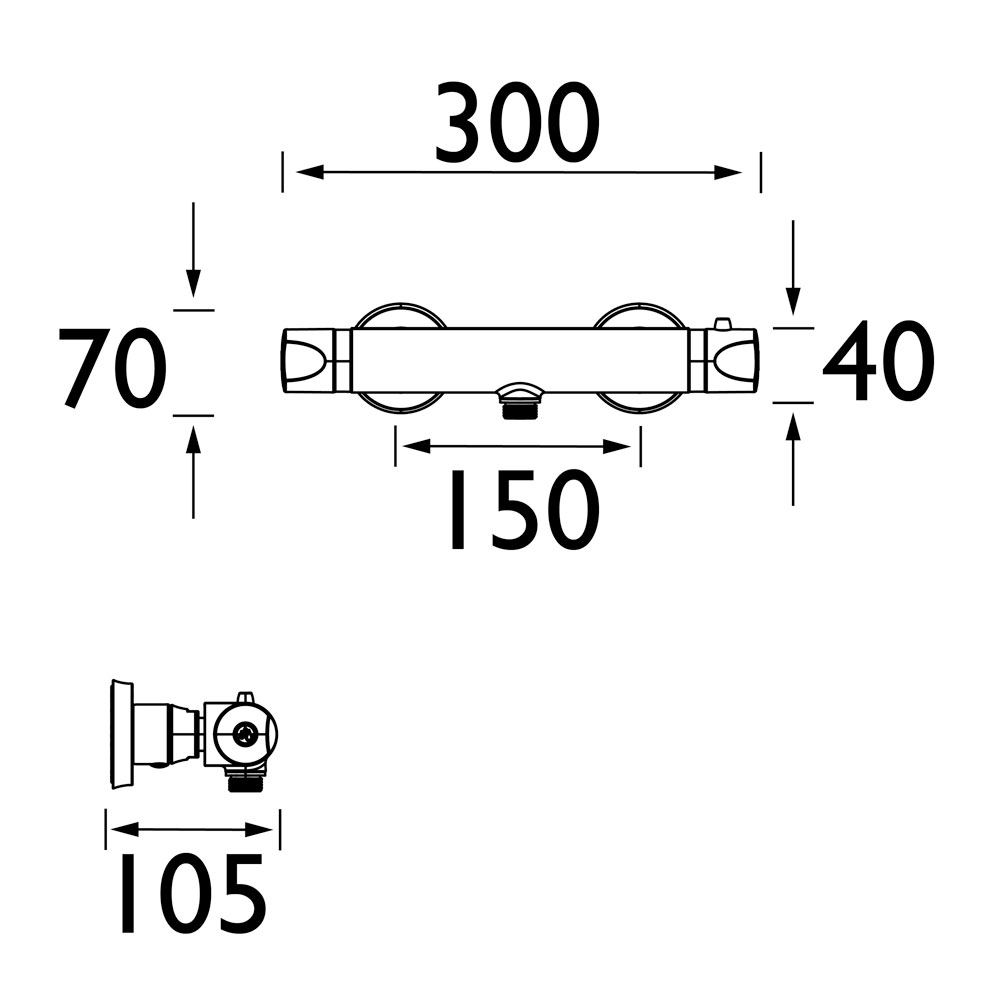

• Dimensions for Fitting: 150mm inlet centres

Additional Information

• Dual control - Flow and temperature are controlled separately, giving accurate control of both
• Thermostatic cartridge maintains showering temperature to +/- 1°C by compensating for changes in the incoming
• Water temperature and pressure giving the stable outlet temperature
• Automatic shut off in the event of hot or cold water supply failure, thus reducing the risk of any injury
• Factory set to a maximum of 38°C to eliminate the ability to select an unsafe temperature - this is adjustable to suit user preference and upto a maximum of 46°C
• Utilises unique fast fit system - wall mount WMNT10 C
• Shower supplied as 'valve only' and thus can be customised by choosing accessories from our Pick n Mix
• Product supplied with 2 x 7 litre per minute flow regulators, one fitted in each inlet to control water flow when fitted to instantaneous water heaters (combination boilers) These can be removed to suit different water delivery systems, i.e. low pressure gravity fed systems (Flow Regulators accurate to +/- 10%)

• Bristan Artisan Thermostatic Surface Mounted Bar Shower Valve and Fast Fit Connections AR2 SHXVOFF C Datasheet (PDF)

• Bristan Artisan Thermostatic Surface Mounted Bar Shower Valve and Fast Fit Connections AR2 SHXVOFF C Fitting Instructions (PDF)

Artisan Thermostatic Surface Mounted Bar Shower Valve and Fast Fit Connections AR2 SHXVOFF C - Thanks to exact design Bristan provides an excellent, reliable item that blends dependable build with a fine look. By choosing HomeSupply you can buy the Bristan Artisan Thermostatic Surface Mounted Bar Shower Valve and Fast Fit Connections AR2 SHXVOFF C at a discounted price, knowing that you are backed by our acclaimed customer service.
