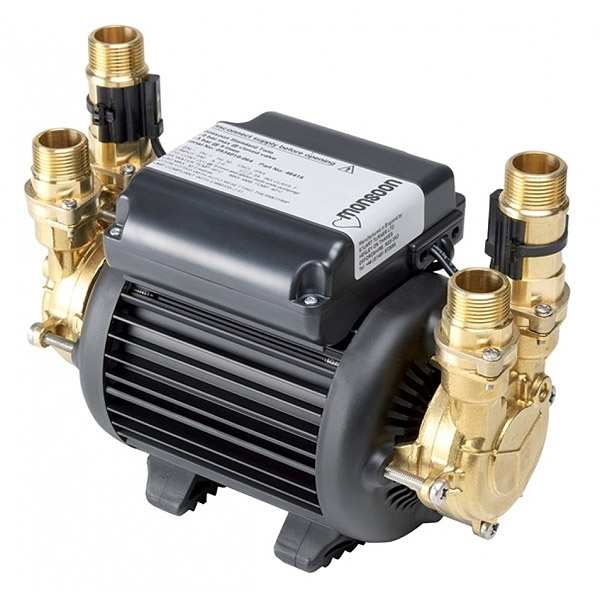

Stuart Turner Monsoon Standard 1.5 Bar Twin Shower Pump 46506

Stuart Turner Monsoon Standard 1.5 Bar Twin Shower Pump 46506
Stuart Turner twin automatic shower pump. This product includes a full installation pack and a 5 year manufacturer's warranty. 1.5 bar pump.
  Ref: ST-46506
  Delivery: 3 to 5 days  Free Delivery
  Manufacturer: Stuart Turner
  SKU: ST-46506
  Manufacturer Guarantee: 3 years
   Availability: In stock
Price: £656.28 inc. VAT
RRP: £709.20
£52.92 discount
Quantity:
-
+



  •    Info
  •    Reviews

Stuart Turner Showermate Twin Automatic Shower Pump (Positive Head)

A The Monsoon Standard 1.5 bar Twin pump is designed for installation into vented systems to pump both the hot and cold water supply boosting both equally.

Where an open vented positive head system is present, with a minimum gravity flow of 0.6 l/min, the Monsoon Standard will be the perfect solution.

Pump Applications

  • Boost hot and cold water services to the complete home, bathroom, kitchen or cloakroom.
  • Boost hot and cold water supplies to a high performance shower system.

Showermate pumps are all manufactured from robust brass constuction to the highest standards and have full Water Regulation Advisory Service (WRAS) approval.

Pump Features

General
Product code 46506
Guarantee 5 years
WRAS approval 1404702
Features
Pump type Peripheral
Mechanical seal Nitrile / Carbon / Silicon Carbide
Anti vibration feet
Inlet strainer(s)
Flexible hoses 4
Dry run protection
Performance
Maximum head (closed valve) 1.5 bar
Performance @ 9 l/min 1.2 bar
Performance @ 18 l/min 1.1 bar
Maximum flow 49 l/min
Maximum static inlet pressure 14 metres
Maximum working pressure* 600 kPa (6 bar)
Maximum ambient air temperature 40 °C
Min / Max water temperature** Min 4 °C / Max 65 °C
Flow switch sensitivity (approx) 0.6 l/min
Connections
Pump connections G ¾ male
Flexible hoses
Connections (UK model) G ¾ female x 22mm push-in
300mm long
Isolating valves on all hoses
Motor
Type Induction, auto-reset thermal trip
Duty rating Continuous (S1) @ 9 l/min and above
Electrical
Power supply/phase/frequency 230 V a.c./ 1 / 50 Hz
Current (full load) 1.5 Amps
Power consumption 345 Watts
Fuse rating 5 Amps
Power cable (pre-wired) 1.5 metres
Physical
Enclosure protection IPX4
Length 265 mm
Width 126 mm
Height (excluding hoses) 202 mm
Weight (including fittings) 7.2 Kg


* The maximum pressure that can be applied to the pump under any installation conditions.

** A stored water temperature of 60 °C is considered sufficient to meet all normal requirements and will minimise deposition of scale in hard water areas.

*** Both heads pumping 4.5 l/min and above.



Please see www.stuart-turner.co.uk for full details

Monsoon Standard 1.5 Bar Twin Shower Pump 46506 - As a result of thorough design Stuart Turner provides a leading component which links dependable build with a fine appearance. As always with HomeSupply you can buy this Stuart Turner Monsoon Standard 1.5 Bar Twin Shower Pump 46506 at a competitive price and be assured of superior customer service.
