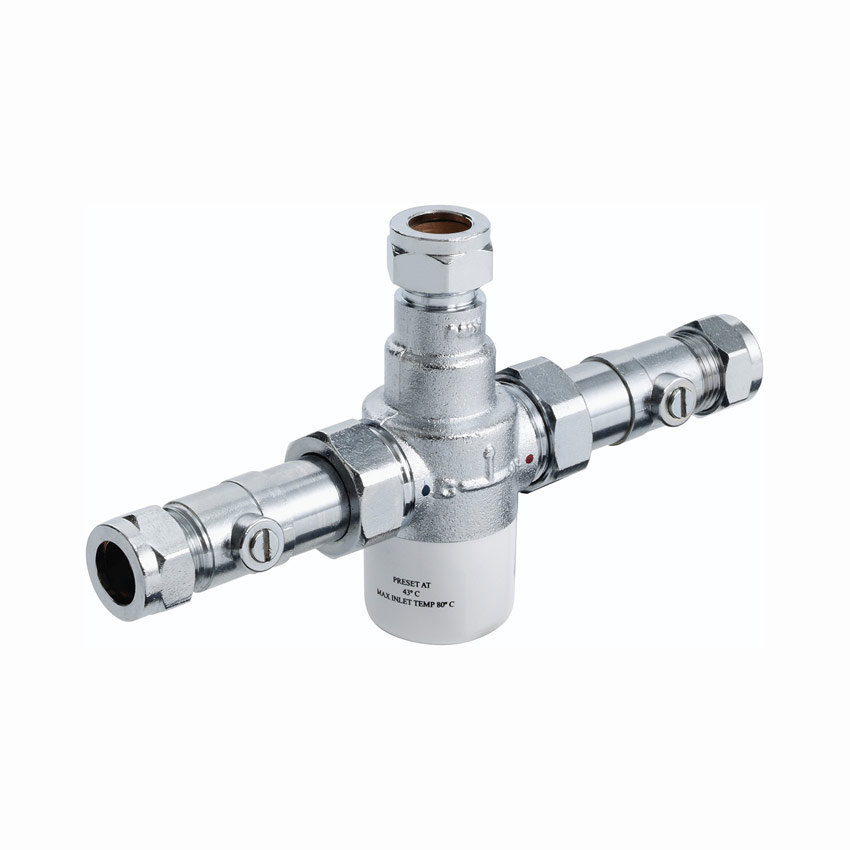

Bristan Gummers Mini 15mm Thermostatic Mixing Valve with Isolation MT503CP ISO

Gummers Mini 15mm Thermostatic Mixing Valve with Isolation from Bristan

15mm Thermostatic Mixing Valve with Isolation - Isolation at mixing point facilitates easy servicing. Automatic shutoff in the event of hot or cold water supply failure. Check valves and serviceable filters as standard. Operates at a maximum pressure differential of 10:1. High pressure bath fill Part G compliant.

TMV3 Thermostatic under sink blending valve with 15mm inlet connections and integral isolation.

Product Specifications

• Main Construction Material: brass
• Shower Type: thermostatic mixing
• Maximum Hot Water Supply Temperature: 80°C
• Plumbing System Suitability: all preferably balanced
• Operating pressure min 0.1 bar - max 2.0 bar
• Connection Inlet: 15mm
• Connection Outlet: 15mm
• Isolation valve included
• Check valve included
• WRAS approved

Additional Information

• Isolation at mixing point facilitates easy servicing
• Automatic shutoff in the event of hot or cold water supply failure
• Check valves and serviceable filters as standard
• Operates at a maximum pressure differential of 10:1
• High pressure bath fill Part G compliant

• Bristan Gummers Mini 15mm Thermostatic Mixing Valve with Isolation MT503CP ISO Datasheet (PDF)

• Bristan Gummers Mini 15mm Thermostatic Mixing Valve with Isolation MT503CP ISO Fitting Instructions (PDF)

Bristan Gummers Mini 15mm Thermostatic Mixing Valve with Isolation MT503CP ISO - Thanks to painstaking composition delivers an impressive product that blends dependable build with a handsome appearance. By choosing HomeSupply you can buy the Bristan Gummers Mini 15mm Thermostatic Mixing Valve with Isolation MT503CP ISO at an affordable price and be assured of outstanding customer service.
